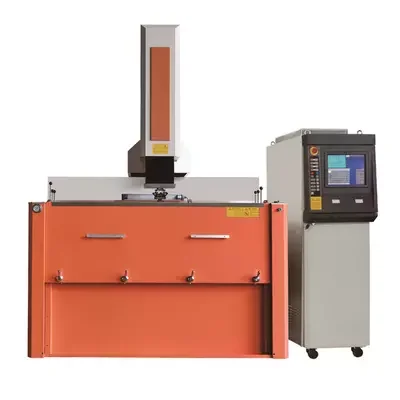

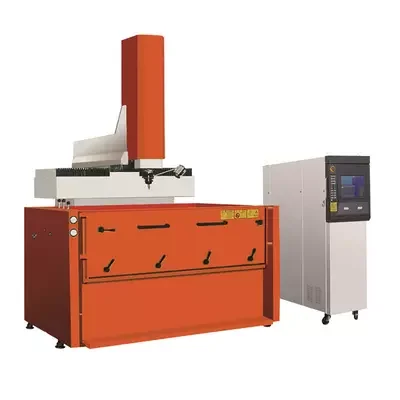

Ram Type CNC540 CNC650 CNC850 CNC1060 CNC EDM Machine
High speed lifting and lifting tool height control.
Spindle fixed point control, discharge gap detection
Groove oil level control.
Fire-proof control, Automatic alarm device.
Carbon deposit prevention function
Automatic measurement.
Precise edge and plane machining
Finish the servo system of
X Y Z, Panasonic AC servo motor.
X Y Z, resolution 0.4um, Minimum drive unit 1um..
Stainless steel edge for wear resistant.
Main Features:
Adaptive discharge machining process.
High speed lifting and lifting tool height control.
Spindle fixed point control, discharge gap detection
Groove oil level control.
Fire-proof control, Automatic alarm device.
Carbon deposit prevention function
Automatic measurement.
Precise edge and plane machining
Finish the servo system of
X Y Z, Panasonic AC servo motor.
X Y Z, resolution 0.4um, Minimum drive unit 1um..
Stainless steel edge for wear resistant.
Discharge system:
Touch screen 15“ TFT-LCD.
USB for data input and output.
Special processing circuit for cemented carbide.
AUTO processing function unit.
Automatic positioning function unit.
High speed and precision machining system.
Automatic Arc cleaning circuit.
Bulit-in database system.
CNC instruction, support G code, ISO code.
With memory and Reset after power off.
Error message indication function.
| Model | Unit | CNC540 | CNC650 | CNC850 | CNC1060 | |
| Worktable size (length×width) | mm | 850×450 | 900*550 | 1150×650 | 1250×800 | |
| X/Y/Z travel | X-axis | mm | 500 | 650 | 800 | 1000 |
| Y-axis | mm | 400 | 420 | 500 | 600 | |
| Z-axis | mm | 300 | 350 | 400 | 450 | |
| Oil groove inside size | mm | 1350×860×500 | 1650*900*500 | 1800×1150×600 | 2000×1300×700 | |
| Maximum load of electrode | kg | 50 | 100 | 120 | 150 | |
| Max.load on table | kg | 800 | 2000 | 3000 | 3500 | |
| Distance from electrode plate to working table | mm | 690-990 | 460-750 | 480-880 | 550-1000 | |
| Max. Processing speed | mm3/min | ≥500mm3/min（graphite-stell)；≥400mm3/min（Cu-steel） | ||||
| Min. electrode consumption | ≤0.1% | ≤0.1% | ≤0.1% | ≤0.1% | ||
| Best Roughness, Ra | Ra | Ra 0.1-0.2 | ||||
| Maximum working current | A | 50 | 50 | 50 | 50 | |
| Total input power | KVA | 10 | 10 | 10 | 10 | |
| Input power | V | 220/380/415 | 220/380/415 | 220/380/415 | 220/380/415 | |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
