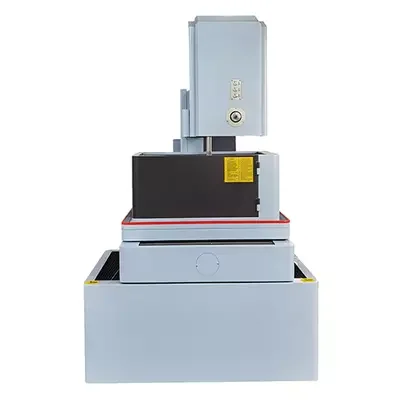

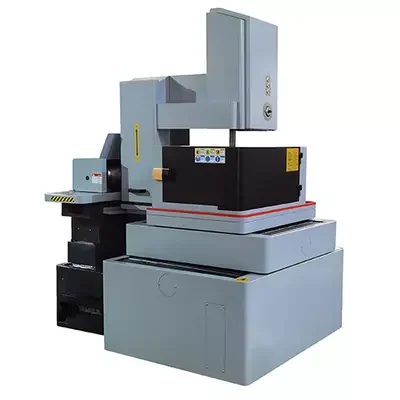

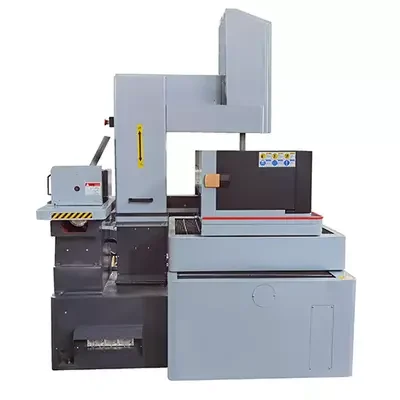

BF350T EDM Wire Cutting Machine
Long travel rail installed in the bottom, which imporve the stability for heavy product.
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in +/-0.006mm, Roughness Ra 0.8.
Full enclosed cover, Similar to European machine.
New Genration control cabinet, High efficient. ( max. cutting speed ≥ 180mm2/min)
Multi-cut EDM Wire Cutting Machine (T series)
Robust frame with "T" shape structure.
Long travel rail installed in the bottom, which imporve the stability for heavy product.
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in +/-0.006mm, Roughness Ra 0.8.
Full enclosed cover, Similar to European machine.
New Genration control cabinet, High efficient. ( max. cutting speed ≥ 180mm2/min)
Technical Parameters:
| Model | FZT-320(350) | FZT-400(450) | FZT-500 | FZT-630 |
| Table size (mm) | 700*500 | 820*600 | 1000*700 | 1200*800 |
| Table travel(X/Y) (mm) | 400*320/450*350 | 500*400/550*450 | 630*500 | 800*630 |
| Max.cut thickness (mm) | 300 | 300 | 400 | 400 |
| Travel size (U/V) (mm) | (Normal):24×24 (Large taper):D-60×60 E-130×130 T-240×240 | |||
| Molybdenum wire Dia. (mm) | (Molydbenum wire) φ0.10～0.22 | |||
| Wire speed (m/sec) | 12,9,7,5,2 | |||
| Max.cutting angle | ±3°/80mm | |||
| Process accuracy (mm) | (Multi-cut): 10×10×30(Square)≤0.006; (One time-cut)≤0.012; (Multi-cut)(Octagon)≤0.009; (Straightness)≤0.006/50mm; | |||
| Process roughness (Ra.um) | (Multi-cut): Ra≤1.0) (single cut): Ra≤2.0 | |||
| Driving motor | Step motor / AC servo motor * (Optional) | |||
| Guide screw and track | Precision ball screw/Linear guide way | |||
| Tension system | three stage (0/1/2) tension adjustable | |||
| Power supply | 380V/50Hz, 2.5kw | |||
| Max.workpiece weight (kg) | 450 | 600 | 1000 | 1200 |
| Weight (kg) | 1800 | 2100 | 2900 | 3300 |
| Dimension (mm) | 1750×1300×2000 | 1900×1450×2000 | 2050×1850×2100 | 2250×2050×2100 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
Package & Delivery
