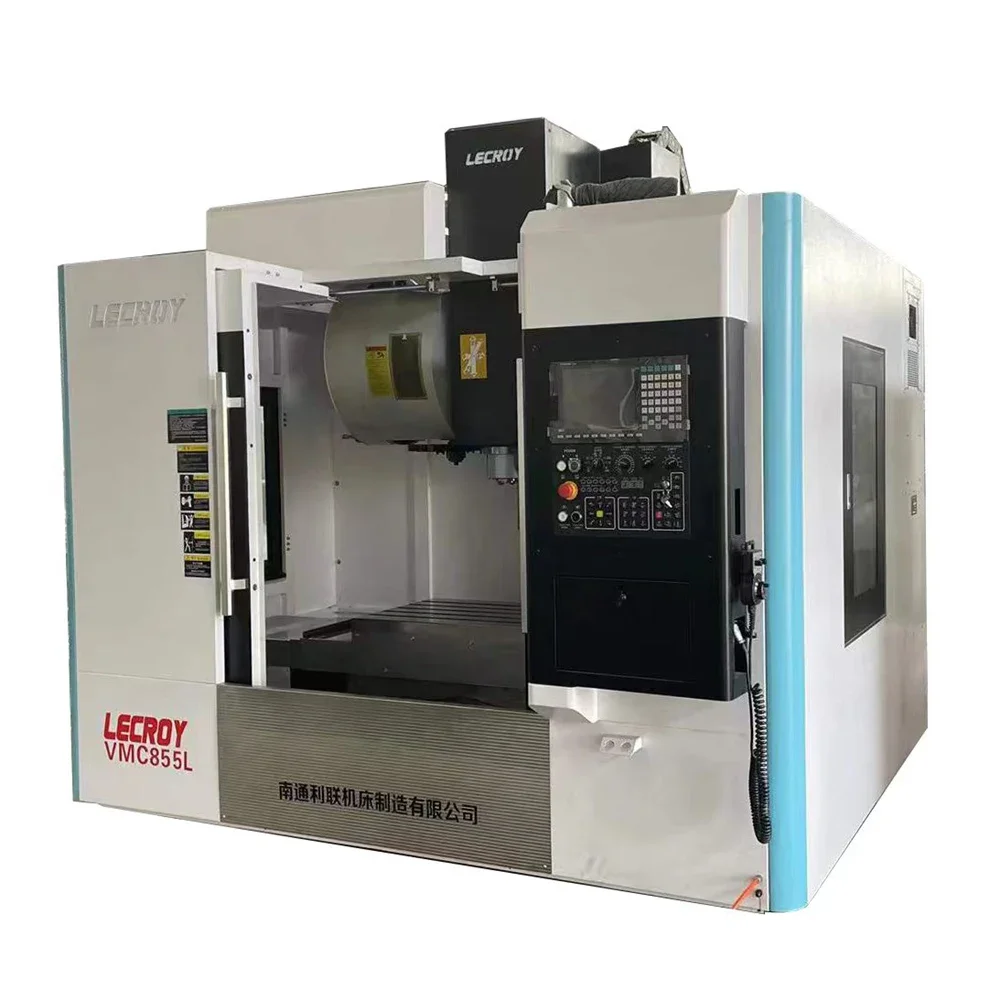

VMC850L CNC Vertical Milling Machine
Robust construction for efficient machining.
Fanuc / Siemens / Mitsubishi / Syntec / LNC / GSK
CNC system for potion.
Standard model 3 axis, 4th and 5th axis for potion.
Main features:
1. Robust construction for efficient machining.
2. HIWIN/PMI linear rail for XYZ, rapid moving speed can reach 36/48 m/min.
3. NSK high-precision bearing preloaded for ball screws on all 3 axes.
4. Armless(Umbrella)Type ATC (16-20 tools) Or Mechnical hand 24-station tool magazine as Optional.
5. The rotary table ( 4 or 5axis) as optional.
6. Integrated coolant system.
7. Chip conveyor and purge system for optimum chip removal.
8. Easy accessibility of work table for easy setup and tooling.
9. Enclosed work space ensures safe and contamination-free work.
10. Different Operating system as optional: Siemens, Fanuc, Mitsubishi,GSK,KND,Syntec.
| Model | VMC650L | VMC855L | VMC1160L |
| Working table size(mm) | 900*420 | 1000*550 | 1200*600 |
| Travel ( X Axis) (mm) | 650 | 840 | 1100 |
| Travel ( Y Axis)(mm) | 500 | 550 | 600 |
| Travel ( Z Axis)(mm) | 500 | 550 | 600 |
| Diatance: working table to spindle nose(mm) | 150-650 | 140-690 | 120-720 |
| Distance: spindle to Verical Guideway(mm) | 525 | 614 | 650 |
| Max. load on working table (kg) | 400 | 600 | 800 |
| T slot (mm) | 3-18*100 | 5-18*100 | 5-18*100 |
| Taper hole of spindle | BT40-Φ120 | BT40-Φ150 | BT40-Φ150 |
| Spindle speed (r/min) | 8000 / 10000 / 12000 /15000 | ||
| Spindle power (kw) | 5.5/7.5 | 7.5/11 | 11/15 |
| Power(X Y Z) (kw) | 1.5/1.5/1.5 | 2.0/2.0/3.0 | 3.0/3.0/3.0 |
| Rapid moving speed X/Y/Z (m/min) | 36/36/36 | 36/36/36 | 36/36/36 |
| Feeding speed (mm/min) | 20-6000 | ||
| X Y Z Positioning accuracy(mm) | ±0.005 / 300mm | ||
| X Y Z Repositioning accuracy(mm) | ±0.003 / 300mm | ||
| Dimension(mm) | 2300*2200*2600 | 2700*2150*2600 | 3400*2800*2800 |
| Weight(Kg) | 4000 | 5000 | 6200 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
