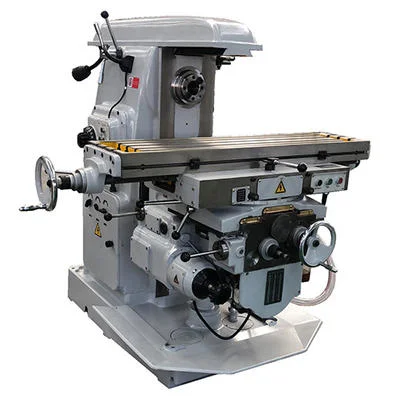

X6140 Universal Horizontal Milling Machine
The main driving parts are made of alloy steel.
Relatively moving parts between machine body and guide rail is PVC laminating treated.
Sufficient power and large speed range which make full use of the efficiency of tools.
Can be equipped with hard alloy tools to mill with fast speed.
The spindle is equipped with impulse device for easier speed adjustment.
Universal milling head,round working table,dividing head and DRO are for option.
Different brand of cnc system for option: FANUC, SIEMENS,SYNTEC and GSK.
Main Features:
1.Robust construction and heavy duty design.
2. The main driving parts are made of alloy steel.
3. Relatively moving parts between machine body and guide rail is PVC laminating treated.
4. Sufficient power and large speed range which make full use of the efficiency of tools.
5. Can be equipped with hard alloy tools to mill with fast speed.
6. The spindle is equipped with impulse device for easier speed adjustment.
7. Universal milling head,round working table,dividing head and DRO are for option.
8.Different brand of cnc system for option: FANUC, SIEMENS,SYNTEC and GSK.
Technical parameters:
| Model | XK6132 | XK6140 |
| Working Table Size (mm) | 320*1325/1700 | 400*1700/2000 |
| Max.Table Load (kg) | 500 | 800 |
| T-Slot No. | 3 | 3 |
| T-Slot Width (mm) | 18 | 18 |
| Space between T-slot (mm) | 70 | 90 |
| Stroke X/Y Z (mm) | 700/1080 *255*320 | 900/1200*315*365 |
| Positioning accuracy (mm) | 0.035/0.045 | 0.035/0.045 |
| Repeat Positioning accuracy (mm) | 0.025/0.035 | 0.025/0.035 |
| Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 |
| Spindle Speed (rpm) | 30-1500 | 30-1500 |
| Steps of Spindle Speed | 18 | 18 |
| Spindle Travel (mm) | 85 | 85 |
| Distance from Spindle Axis to working table (mm) | 30～380 | 30～410 |
| Distance from Vertical rail to the center of working table (mm) | 215～470 | 235～580 |
| X Axis moving Speed (mm/min) | 6-3500 | 6-3500 |
| Y Axis moving Speed (mm/min) | 6-3500 | 6-3500 |
| Z Axis movting Speed (mm/min) | 6-1200 | 6-1800 |
| Power of Spindle Motor (kw) | 7.5 | 11 |
| Feeding Motor Torque X/Y/Z (N.M) | 10 /10 /17 | 10 /10 /27 |
| Power of cooling pump motor (kw) | 0.125 | 0.125 |
| General Power (kw) | 23 | 25 |
| Machine Dimension (mm) | 2300*1800*1660 | 2600*2200*2400 |
| Machine Weight (kg) | 2850 | 3850 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
Package & Delivery
