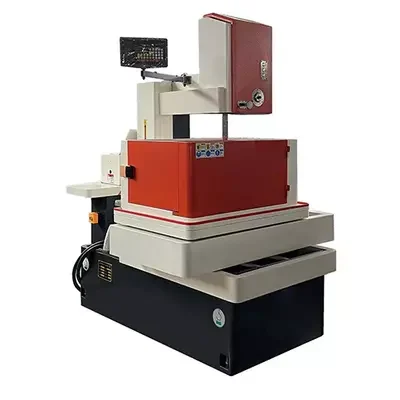

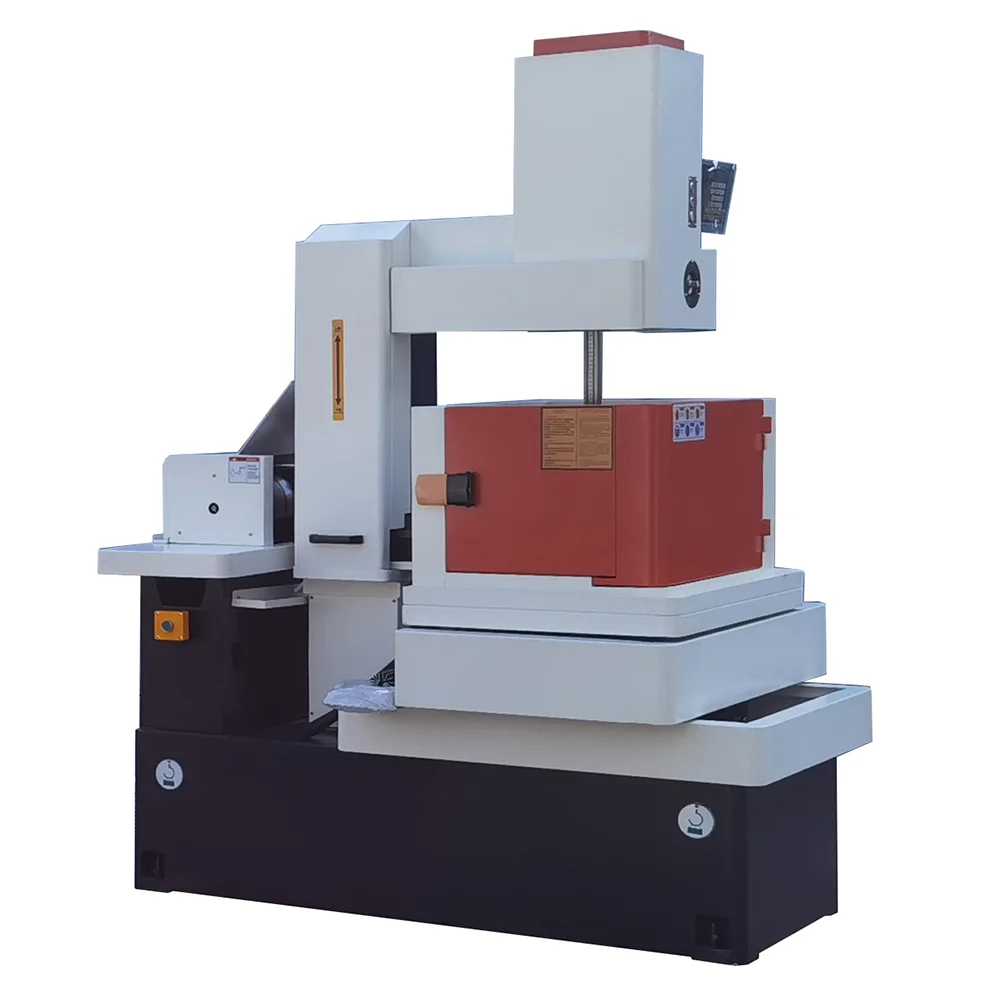

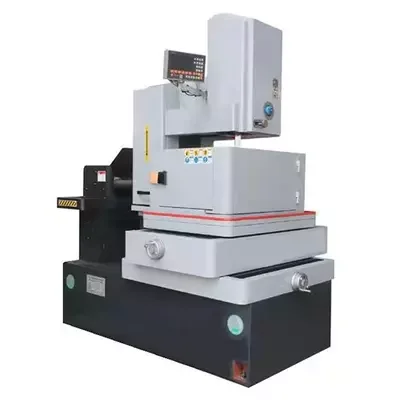

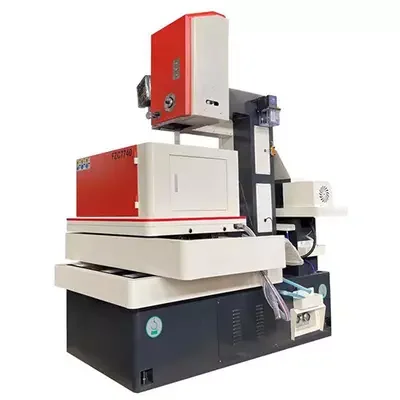

BF320C BF400C Multi Pass EDM Wire Cut Machine
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work;
Taiwan linear rail, Grade P or H, Ball screw. C2 or C3.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in 0.005mm, Roughness Ra 0.8.
Multi-cut EDM Wire Cutting Machine (C type)
Robust frame with "C" mast.
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work;
Taiwan linear rail, Grade P or H, Ball screw. C2 or C3.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in 0.005mm, Roughness Ra 0.8.
Technical Parameters:
| Model | BF320C | BF350C | BF400C | BF450C |
| Working table size (mm) | 500×720 | 550*780 | 580×820 | 650*880 |
| Table travel (X/Y) (mm) | 320×400 | 350×450 | 400×500 | 450×550 |
| Max.cutting thickness (mm) | 400 | 300 | 400 | 300 |
| Max. load on workingtable (KG) | 400 | 500 | 600 | 800 |
| Travel size (U/V) (mm) | 24×24 (±3°) ( optional: 30×30 75×75 135×135) | |||
| Wire Dia. (mm) | (Molydbenum wire) φ0.10～0.22 （ special 0.25, 0.30mm) | |||
| Wire speed (m/sec) | 2.0-11.0 | |||
| Max. cutting speed (mm2/min) | 160-180 | |||
| Max.cutting angle | ±3°/80mm ( ±6° ±15° ±30°degree is optional) | |||
| Process accuracy (mm) | (Multi-cut): 10×10×30(Square)≤0.008; (One time-cut)≤0.012; (Multi-cut)(Octagon)≤0.01; (Straightness)≤0.008/50mm; | |||
| Roughness (Ra.um) | Multi-cut):Ra≤0.8, Single-cut):Ra≤2.0 | |||
| Driving motor | Step motor / AC servo motor* (Optional) | |||
| Guide rail and ball | Precision ball screw/Linear rail | |||
| Tension system | three stage(0/1/2)tension adjustable | |||
| Power supply | 380V/50Hz, 2.5kw | |||
| Weight (kg) | 1600 | 1700 | 1800 | 2000 |
| Dimension (mm) | 1700*1400*1900 | 1700*1500*1900 | 1900*1500*1900 | 1900*1550*2000 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
Package & Delivery
