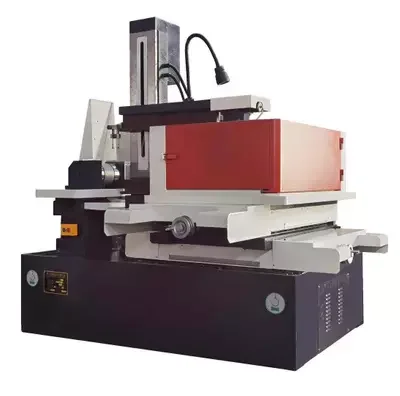

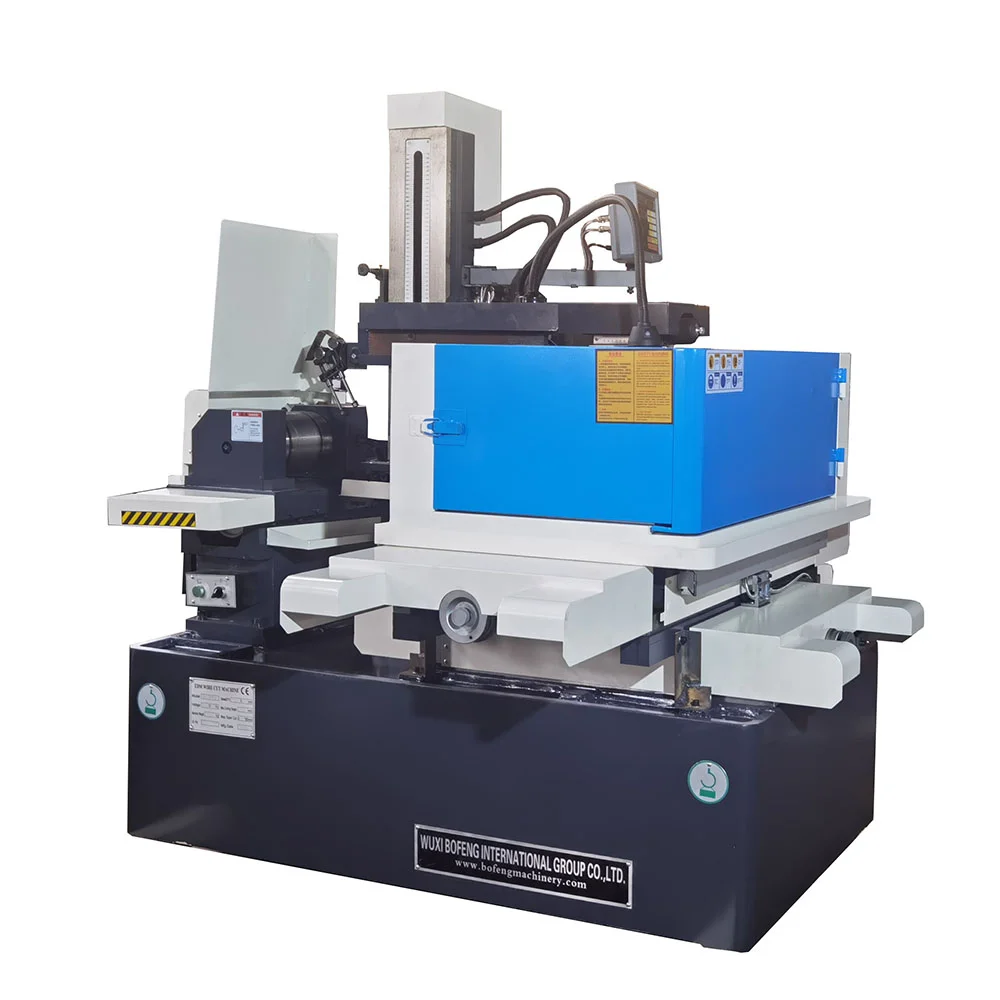

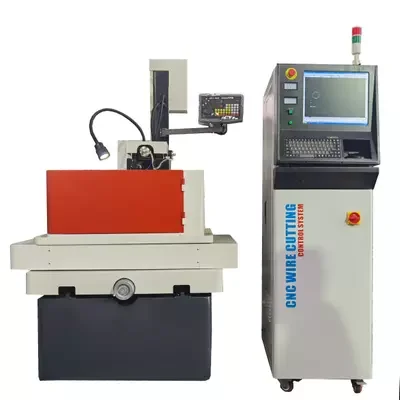

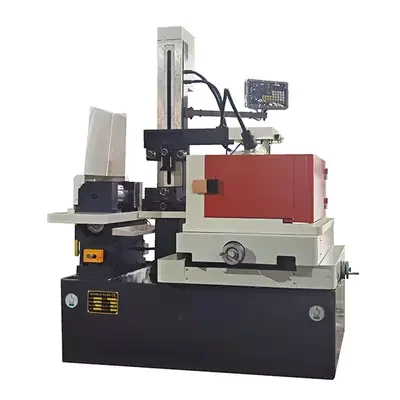

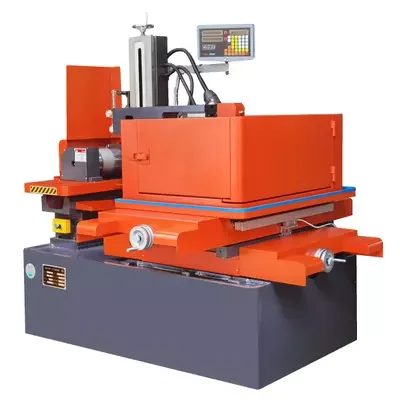

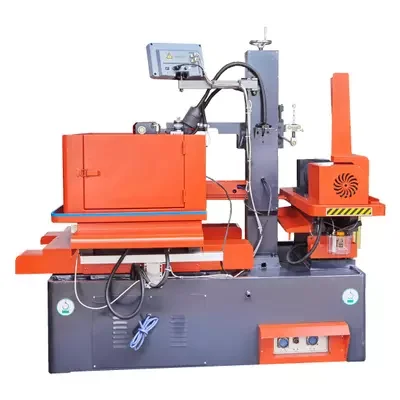

DK7735 DK7745 Fast Speed Wire EDM Machine
Main Features:
Roller for X/Y axis, also called hard rail ( V rail);
With ±3° taper as standard, ±15°, ±30°, ±45° as option;
Accuracy: ±0.01/300mm;
Roughness: Ra 1.0-2.5 µm;
Low consumption, material saving.
Technical Parameters:
| Model | DK7720 | DK7725 | DK7735 | DK7745 |
| Table size (mm) | 490*380 | 580*400 | 740*470 | 830*570 |
| X*Y travel (mm) | 250*200 | 320*250 | 450*350 | 550*450 |
| Max. Z travel (mm) | 200 | 250 | 400 | 500 |
| Max. workpiece weight (kg) | 200 | 250 | 350 | 450 |
| Cutting speed (mm2/min) | Standard cutting speed:110-120, Max. cutting speed: 160-180 | |||
| Dimension L*W*H (mm) | 1200*900*1300 | 1300*1100*1500 | 1500*1200*1650 | 1700*1350*1700 |
| Net weight (kg) | 750 | 900 | 1100 | 1250 |
Main Features:
Roller for X/Y axis, also called hard rail ( V rail);
With ±3° taper as standard, ±15°, ±30°, ±45° as option;
Accuracy: ±0.01/300mm;
Roughness: Ra 1.0-2.5 µm;
Low consumption, material saving.
Different controller and different software:
a) High speed single cutt controller;
b) Multi-cut controller ( which improve the accuracy and finish);
Software: AUTOCUT, X8, HL, HF.
All kinds of voltage: 220/380/415/440V
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
Package & Delivery
