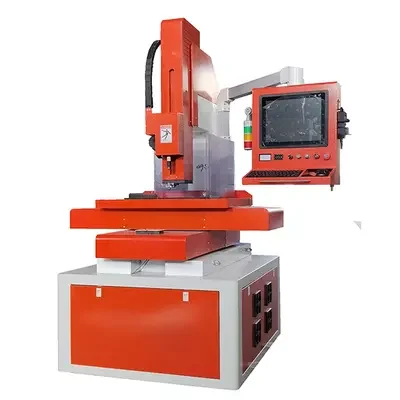

CNC450A High Effeciency EDM Hole Drilling Machine
Marble working table with stainless bracket, no rust.
Drilling diameter from 0.2mm to 3mm. The maximum depth ratio could be 300:1.
Capable of drilling all kinds of conductive material, and drill on all kinds shape, such as oblique and curved surface.
Special program for carbide such as tungsten, Fast processing speed and low consumption.
Main Feature:
XYZ all linear rail to support heavy load and move quickly to ensure precise positioning.
Marble working table with stainless bracket, no rust.
Drilling diameter from 0.2mm to 3mm. The maximum depth ratio could be 300:1.
Capable of drilling all kinds of conductive material, and drill on all kinds shape, such as oblique and curved surface.
Special program for carbide such as tungsten, Fast processing speed and low consumption.
XY Hydbrid motor, Z servo control, 4th axis is optional.
Industrial PC control, Win7 operation system, support DXF file.
Program for many different diameter of holes in one process.
Real-time control, Discharge process monitoring.
with DRO for XYZ, with depth setting.
With data memory if power cut off.
With recycling coolant tank and filtering system (optional)
| Model | CNC450 | CNC630 | CNC450A |
| Working table size(mm) | 600*420 | 800*550 | 500*400 |
| Max. load on working table ( kg) | 300 | 500 | 200 |
| Stroke X/Y（mm） | 450*350 | 630*450 | 450*350 |
| Servo stroke Z (mm) | 300 | 400 | 300 |
| Spindle stroke W（mm） | 300 | 400 | 300 |
| Electrode diameter（mm） | Φ0.15-Φ3.0 | Φ0.15-Φ3.0 | Φ0.15-Φ3.0 |
| Positioning Accuracy (mm) | ±0.01 | ||
| Repeated Position Accuracy (mm) | ±0.005 | ||
| Max. drilling speed | 30-60mm/min | ||
| Spindle speed(rpm) | 120 | ||
| Distance to guider(mm) | 350 | 450 | 350 |
| Max. working current ( A) | 30 | 30 | 30 |
| Voltage (V/Hz) | 220/230, 380, 415V / 50-60Hz, 3 Phase | ||
| Capacity of working fluid （L） | 60 | 60 | 60 |
| Max.pressure of working fluid（MPa） | 8 | 8 | 8 |
| Dimension（L×W×H）(mm) | 1600×1200×2100 | 1800×1400×2100 | 1300×1200×2000 |
| Weight（kg） | 1000 | 1500 | 700 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
Package & Delivery
