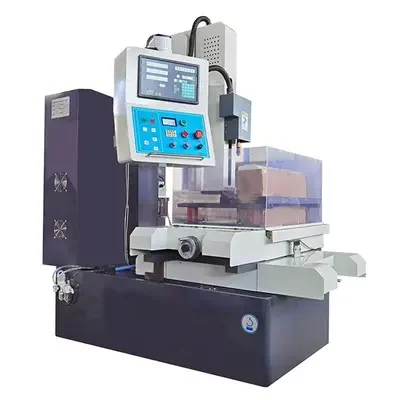

DD703.40A High Speed EDM Drilling Machine
Servo motor for Z axis improved return speed.
Drilling diameter from 0.2mm to 3.0mm, even 0.15mm.
Can drill on oblique and curved surface directly.
XY with DRO, optical linear ruler and digital read out ( Standard).
Z axis DRO, with depth setting for blind hole (optional).
Steel water protection cover.
Swivel lever for operating panel.
City water or pure water as coolant, low cost and no pollution.(Pure water is better)
XYZ linear rail, XY with motor for fix position.
Servo motor for Z axis improved return speed.
Drilling diameter from 0.2mm to 3.0mm, even 0.15mm.
Can drill on oblique and curved surface directly.
XY with DRO, optical linear ruler and digital read out ( Standard).
Z axis DRO, with depth setting for blind hole (optional
Steel water protection cover.
Swivel lever for operating panel.
City water or pure water as coolant, low cost and no pollution.(Pure water is better)
| Model | DD703.30A | DD703.40A | DD703.50A | DD703.63A |
| Working table size (mm) | 360*480 | 540*780 | 650*1000 | 750*1100 |
| Stroke X-Y (mm) | 300*400 | 400*500 | 500*630 | 630*800 |
| Electrode material | Copper / Brass tube | |||
| Electrode diameter (mm) | Φ0.2-Φ3.0 | Φ0.2-Φ3.0 | Φ0.2-Φ3.0 | Φ0.2-Φ3.0 |
| Working stroke Z axis (mm) | 400 | 400 | 500 | 500 |
| Spindle stroke W axis (mm) | 400 | 400 | 600 | 600 |
| Max.spindle rotating speed (rpm) | 1500 | 1500 | 1500 | 1500 |
| Max. drilling speed (mm/min) | 30-60 | |||
| Max. working current (A) | 30 | |||
| Max. consumption power (KVA) | 3.5 | |||
| Power (V/Hz) | 3 Ph, 220V / 380V / 415V， 50/60Hz | |||
| Capacity of water tank(L) | 25 | |||
| Max.pressure of working fluid(MPa) | 7.0 | |||
| Dimension(L*W*H)(mm) | 1200*1150*1800 | 1600*1300*1800 | 1950*1500*2100 | 2100*1700*2000 |
| Weight(kg) | 650 | 1400 | 1800 | 2400 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
