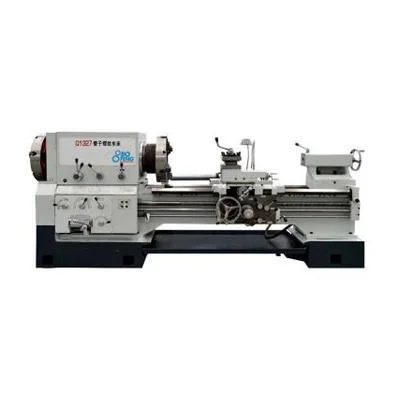

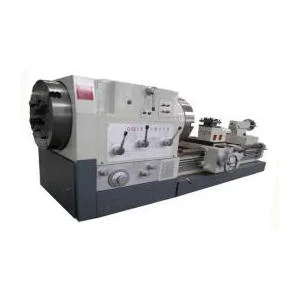

Heavy Duty Pipe Threading Machine - Manual

◆ Machine body are made of resin sand casting with timing treatment, which guarantees stability of the machine.
◆ Double chuck for longer pipe.
◆ Electric chuck clamp, Doubel bearing on each end.
◆ Hydraulic brake.

sales@wxbofeng.com

+86 13771407736

Variable Lathe MFT290V 300V

DK7720 DK7725 Small EDM Wire Cut Machine

Product Details

Model	Q350
Max. swing Diameter on bed (mm)	1000
Tube through diameter (mm)	114-350
Bed rail width (mm)	820mm
Max Taper	1:04
Max. machining length (mm)	1500 / 3000 / 4000
Max. travel o the taper device (mm)	930
Spindle speed stages	9
Spindle speed (r/min)	6.6-198
Spindle bore (mm)	355
Range of longitudinal feeds (mm)	32 kinds / 0.07-1.33mm
Range of cross feeds (mm)	32 kinds / 0.02-0.45mm
Metric thread range (mm)	21 kinds / 1-15mm
Inch thread range (mm)	26 kinds / 1-14 TPI
Chuck (mm)	Electric clamp, Dia. 780mm
Rapid moving speed of slide (mm/min)	2500mm/min
Max. travel of compound rest (mm)	210
Tool Shank (mm)	30*30
Min resolution of the compound rest (mm)	0.05
Min resolution of the slide (mm)	0.05
Tail stock sleeve Diameter (mm)	100
Tail stock sleeve travel (mm)	250
Sleeve taper	MT 6#
Spindle motor	Y180M-4/18.5KW/1460r/min
Slide motor	NY80-4 1.1kW
Chuck clamp motor	YXZ90-L-4 1.5kW
Main motor belt	4- B1727
Machine size (mm)	355016501630 ( 1500mm)
Machine weight ( kg)	8500

About us

We are ISO9000 certified enterprise, some products has been CE certified and exported to Europe. Totally we have exported to more than 50 countries and had dealers and partner in about 20 countries. BOFENG not only supply machines, but also supply complete solutions and special customized machines.
