Related Products

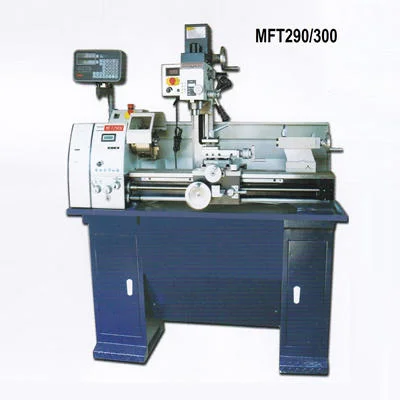

Variable Lathe MFT290V 300V
* Speed display
* 3-jaw chuck Φ160
* Splash guard
* Chip tray
* Chuck protection
* Tool turret protection
* Tool turret wrench
* Steady center MT5/MT3
* Change gears
* Morse taper MT2/B16
* Tie rod M10
* Tool box & tools
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Standard Accessories:
* Speed display
* 3-jaw chuck Φ160
* Splash guard
* Chip tray
* Chuck protection
* Tool turret protection
* Tool turret wrench
* Steady center MT5/MT3
* Change gears
* Morse taper MT2/B16
* Tie rod M10
* Tool box & tools
Optional Accessories:
* Steady rest
* Follow rest
* Face plate
* Working bench
* 4-jaw chuck Φ160
* Live center MT5/MT3
* Halogen lamp
* Collect chuck
* Keyless chuck 1-13mm
* Milling tool
Technical Parameters:
| Model | MFT290Vx700 | MFT300Vx700 |
| Max.swing over bed (mm) | 290 | 300 |
| Distance between centers (mm) | 700 | 700 |
| Swing over cross slide (mm) | 170 | 180 |
| Width of bed (mm) | 182 | 182 |
| Spindle bore (mm) | 38 | 38 |
| Taper of spindle bore | MT5 | MT5 |
| Range of spindle speed (rpm) | 80-2000 | 80-2000 |
| Taper of tailstock quill | MT3 | MT3 |
| Range of metric threads (mm) | 0.2-3.5 | 0.2-3.5 |
| Range of inch threads | 8-56T.P.I | 8-56T.P.I |
| Motor power (w) | 1500 | 1500 |
| Drilling and milling head | BF20 | BF20 |
| Max.drilling diameter (mm) | Φ20 | Φ20 |
| Face milling capacity (mm) | 63 | 63 |
| End milling capacity (mm) | 20 | 20 |
| Taper of spindle bore (drilling head) | MT2/R8 | MT2/R8 |
| Sleeve travel (mm) | 52 | 52 |
| T-Slot size (mm) | 12 | 10 |
| Range of spindle speed(drilling head) (rpm) | 50-2250 | 50-2250 |
| Max.distance from spindle to working table (mm) | 380 | 380 |
| Spindle travel (manual) | 190 | 190 |
| Motor power(drilling head) (w) | 750 | 750 |
| N.W.weight (Kg) | 310 | 315 |
| Packing dimension(LxWxH) (mm) | 1450x770x1050 | 1450x770x1050 |
