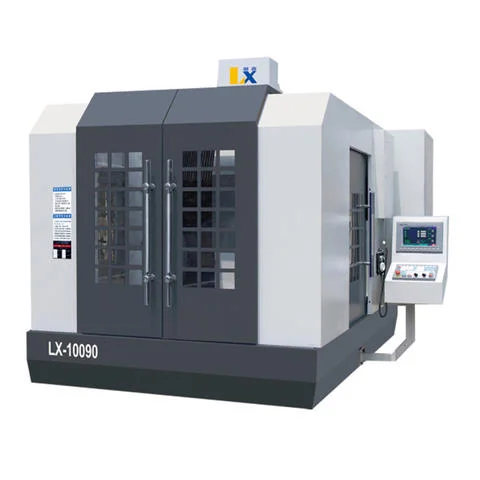

Large Working Table CNC Engraving Machine

Bed, columns and travel tracks form a solid frame structure
for high rigidity under hard machining conditions.
Taiwan HIWIN linear rail for all XYZ axis.
Different Operating system as optional: FANUC, SIEMENS, GSK, LNC, SYNTEC.

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

CNC Engraving Milling Machine with Tool Magzine

Universal Turning Machine

Product Details

Double Column Machining Center ( Gantry type)

Main Features:

1.Taiwan ball screw and Linear rail

2.Yaskawa or Panasonic servo motor

3.Different control system as option

4.Auto tool Changer as option

Technical parameters:

Model	LX8070	LX1290	LX13110
Table size (mm)	800×700	1200×900	1300×1100
Stroke(X/Y/Z)(mm)	800700300	1200900500	13001100500
Quick moving speed(mm/min)	12000	15000	15000
Max. feeding speed(mm/min)	6000	8000	8000
Positioning Accuracy (mm)	0.01/300	0.012/300	0.012/300
Repeating Accuracy (mm)	0.005	0.006	0.006
Perpendicularity X/Y (mm)	0.015/300	0.015/300	0.015/300
Max. load on table(kg)	600	2000	2000
Max. Spindle speed(rpm)	18000	15000	15000
Main motor power(kw)	5.5/7.5	7.5/11	7.5/11
Spindle chuck	ER32/ER40/BT30	ER40/BT40	BT40
Servo system	CNC system: LNC/ Syntec/ Fanuc Servo system: Yaskawa /Panasonic/ Fanuc
Voltage(V/ Hz)	3 Phase 380V/50Hz, ( 220V/50hz)
Dimension(mm)	2300×1920×2400	3000×2300×2500	3300×2600×2500
Weight(kg)	3500	6000	6800
