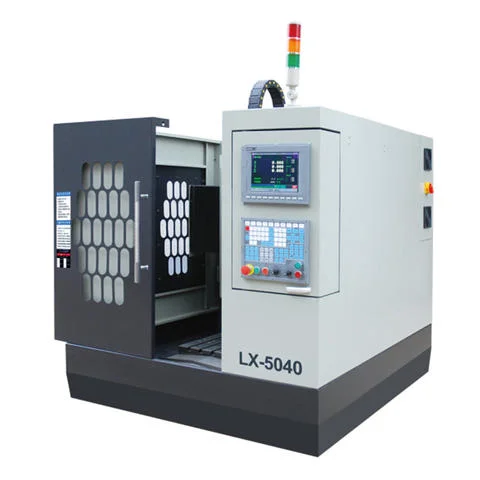

LX5040 CNC Engraving Milling Machine

Bed, columns and travel tracks form a solid frame structure
for high rigidity under hard machining conditions.
Taiwan HIWIN linear rail for all XYZ axis.
Different Operating system as optional: FANUC, SIEMENS, GSK, LNC, SYNTEC.

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

LX6050 CNC engraving milling machine for metal

Product Details

Double Column Machining Center ( Gantry type)

Main Features:

1.Taiwan ball screw and Linear rail

2.Yaskawa or Panasonic servo motor

3.Different control system as option

4.Auto tool Changer as option

Technical parameters:

Model	LX5040	LX6050	LX8070
Table size (mm)	500×400	600×500	800×700
Stroke(X/Y/Z)(mm)	500400250	600500260	800700300
Quick moving speed(mm/min)	12000	12000	12000
Max. feeding speed(mm/min)	6000	6000	6000
Positioning Accuracy (mm)	0.008/300	0.008/300	0.01/300
Repeating Accuracy (mm)	0.004	0.004	0.005
Perpendicularity X/Y (mm)	0.015/300	0.015/300	0.015/300
Max. load on table(kg)	300	500	600
Max. Spindle speed(rpm)	24000	18000/24000	18000
Main motor power(kw)	3.2/4.0	4.0/5.5	5.5/7.5
Spindle chuck	ER32/BT30	ER32/BT30	ER32/ER40/BT30
Servo system	CNC system: LNC/ Syntec/ Fanuc Servo system: Yaskawa /Panasonic/ Fanuc
Voltage(V/ Hz)	3 Phase 380V/50Hz, ( 220V/50hz)
Dimension(mm)	1650×1500×1900	1950×1800×2300	2300×1920×2400
Weight(kg)	2300	2900	3500
