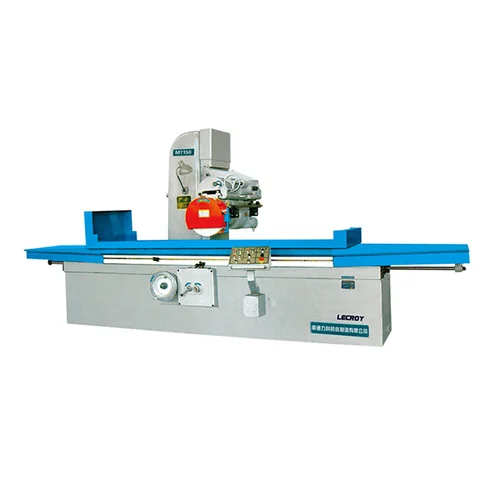

M7150 M7163 Automatic Surface Grinding Machine
The longitudinal movement of the working table is drivn by hydraulic power.Stepless speed regulating.
The longitudinal movement of grinding head is driven by hydraulic power.Stepless speed regulating.
The grinding head is equipped with fast speed lifting motor,which increase the efficiency.
The vertical and horizontal rail way for grinding head is pasted with PTFE soft belt.Good wear resistance.
High precision,good stability and low noise.
GSK,Siemens,Fanuc CNC system is for option.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Main Features:
Robust construction and heavy duty design.
The longitudinal movement of the working table is drivn by hydraulic power.Stepless speed regulating.
The longitudinal movement of grinding head is driven by hydraulic power.Stepless speed regulating.
The grinding head is equipped with fast speed lifting motor,which increase the efficiency.
The vertical and horizontal rail way for grinding head is pasted with PTFE soft belt.Good wear resistance.
High precision,good stability and low noise.
GSK,Siemens,Fanuc CNC system is for option.
Technical Parameters:
| Model | M7132 | M7140 | M7150 | M7163 |
| Working Table Size (mm) | 320*1000 | 400*1000 | 500*1250 | 630*1250 |
| Max.Grinding Size（W*L*H）(mm) | 320*1000*400 | 400*1000*525 | 500*1200*525 | 1250*630*500 |
| Longitudinal Movement of Working Table (mm) | 200-1110 | 200-1110 | 200-1110 | 200-1350 |
| Speed of Working Table（Stepless Speed）(m/min) | 3/25 | 3/25 | 3/25 | 3/25 |
| T-Slot No. | 3 | 3 | 3 | 3 |
| Width (mm) | 18 | 18 | 18 | 22 |
| Distance from Grinding Wheel Center to Table Surface (mm) | 135-600 | 135-665 | 135-665 | 140-665 |
| Max.Cross travel of grinding head(mm) | 350 | 450 | 550 | 630 |
| Max.Vertical travel of grinding head(mm) | 400 | 665 | 665 | 665 |
| Handwheel scale value(per revolution)(mm) | 1 | |||
| Grinding Wheel Size（OD*W*ID）(mm) | Ф350*40*Ф127 | Ф350*40*Ф127 | Ф400*50*Ф203 | Ф400*50*Ф203 |
| Grinding wheel speed(r/min) | 1440 | 1440 | 1440 | 1440 |
| Rapid lifting motor(power)(Kw) | 0.37 | 0.37 | 0.37 | 0.37 |
| Total motor power(Kw) | 11 | 11 | 12 | 14 |
| Power of Grinding Head Motor (Kw) | 7.5 | 7.5 | 7.5 | 11 |
| Power of Hydraulic Pump (Kw) | 3 | 3 | 5 | 5.5 |
| Accuracy ( mm) | 0.015*1000 | 0.015*1000 | 0.015*1000 | 0.015*1000 |
| Roughness Ra ( μm) | 0.63 | |||
| Magnet Chuck Size（W*L）(mm) | 320*1000 | 400*1000 | 500*1250 | 630*1250 |
| Machine Dimension（L*W*H）(mm) | 2800*1750*2350 | 4500*2000*2350 | 3800*2700*2800 | 3800*2700*2800 |
| Net Weight (Kg) | 4000 | 4500 | 5300 | 5600 |
