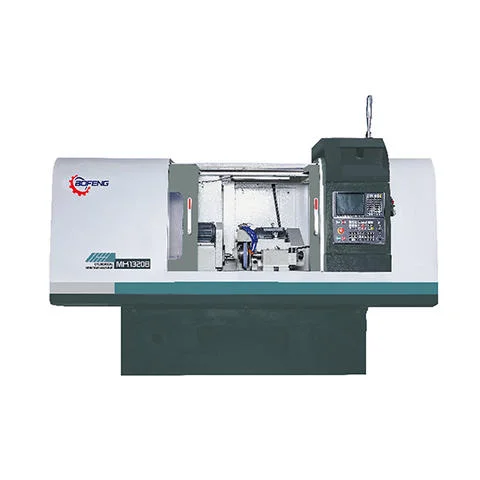

MK1320 MK1332 Precision CNC Cylindrical Grinding Machine
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Technical Parameters:
| Model | MK1320B | MK1332 | |
| Distance Between Centers | mm | 500/750 | 500/750/1000/1500 |
| Center Height | mm | 135 | 180 |
| Grinding Range ( O.D) | mm | 8-200 | 8-320 |
| Max.Weight of Workpiece | kg | 50 | 100 |
| Center Taper of Workhead | MT | 4 | 4 |
| Spindle Speed | rpm | 50HZ:25-260 | 50HZ:25-260 |
| Max.Dimension of Wheels (OD*W*ID) | mm | 400*50*203 | 500*50*203 |
| Linear Speed of Wheel | m/s | 35 | 35 |
| Min. Setting Unit | mm | 0.0001 | 0.0001 |
| Max. Working Table Swiveling Angle | degree° | -5°(500) / -3°(750) | 3°(750) |
| degree ° | 9° | 9°(500)/8°(750) 7°(1000)/6°(1500) | |
| Center Taper of Tailstock | MT | 4 | 4 |
| Quill Travel | mm | 30 | 30 |
| CNC System | HNC-808DG/Siemens 808D/Fanuc 0ITF | ||
| Wheelhead Motor Power | Kw | 4 | 5.5 |
| Workhead Motor Power | Kw | 1.5 | 1.5 |
| Roundness | um | 2 | 2 (500/750) 3 (1000/1500) |
| Cylindricity | um | 5 | 5 (500/750) 8 (1000/1500) |
| Best Roughness | um | Ra0.2 | Ra0.2 |
| Machine Weight | Kg | 3200/3600 | 4300/4600/5000/5600 |
| Machine Size | mm | 2850x1900x2200(500) 3400x1900x2200(750) | 3600x2300x2200(500) 2700x1420x1600(750) 4650x2300x2200(1000) 5850x2300x2200(1500) |
