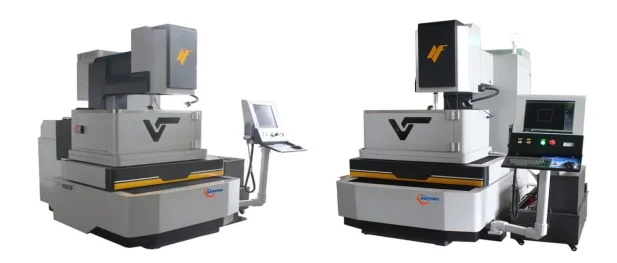

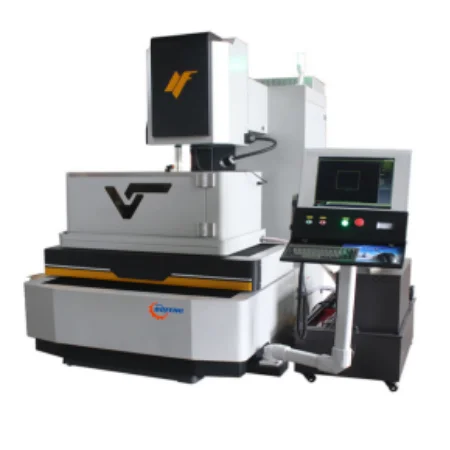

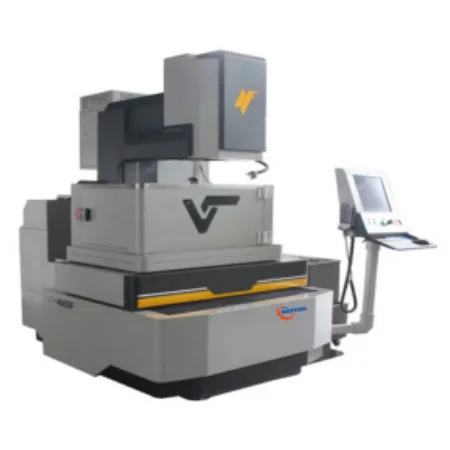

Multi-cut EDM Wire Cutting Machine
Robust frame with "C" mast for fix Z axis.
Z axis with 4-way linear rail, which can stop in any height without clearance.
T shape machine bed, which keep working table moving in bed both for X and Y, which can keep same accuracy for heavy workpiece.
XYUVZ 5 axes independent working, XYUV can working simultaneously.
XYUVZ with Taiwan linear rail and servo motor, can keep guider close to workpice for best roughness.
Z axis height can be adjusted in program, and can set height then restore the same height after lifting for getting out workpiece.
With mechanic wire tensioning mechanism for molybdenum wire, keep stable cutting.
All function can be set in software and hand controller. Z also can be set in software.
High speed PLC controller, with industrial computer. 17" touch screen is optional.
Windows 7 / Windows 10 operation system.
Tolerance can keep in +/-0.005mm, Roughness Ra 0.8.
Main Features:
Adopt the newest version Autocut software which is based on Autocad, support DXF, DWG format.
Robust frame with "C" mast for fix Z axis.
Z axis with 4-way linear rail, which can stop in any height without clearance.
T shape machine bed, which keep working table moving in bed both for X and Y, which can keep same accuracy for heavy workpiece.
XYUVZ 5 axes independent working, XYUV can working simultaneously.
XYUVZ with Taiwan linear rail and servo motor, can keep guider close to workpice for best roughness.
Z axis height can be adjusted in program, and can set height then restore the same height after lifting for getting out workpiece.
With mechanic wire tensioning mechanism for molybdenum wire, keep stable cutting.
All function can be set in software and hand controller. Z also can be set in software.
High speed PLC controller, with industrial computer. 17" touch screen is optional.
Windows 7 / Windows 10 operation system.
Tolerance can keep in +/-0.005mm, Roughness Ra 0.8.
Technical Parameters:
| Model | LF320TA | LF400TA | LF500TA |
| Working table size (mm) | 500×720 | 580×820 | 700×1000 |
| Table travel(X/Y) (mm) | 320×400 | 400×500 | 500×630 |
| Max.cutting thickness (mm) | 380 | 380 | 380 |
| Max. load on workingtable (KG) | 400 | 600 | 800 |
| Uv travel (U/V) (mm) | 30×30 (±6°) / 75×75 (±12°) | ||
| Wire Dia. (mm) | (Molydbenum wire) φ0.10～0.25 | ||
| Wire speed (m/sec) | 2.0-11.0 | ||
| Max. cutting speed (mm2/min) | 200 | ||
| Max. working current (A) | 8-10A | ||
| Max.cutting angle | ±6°/80mm ( ±12°/80mm is optional) | ||
| Process accuracy (mm) | Straight cutting: less than ±0.005 | ||
| Angle cutting: less than ±0.012 | |||
| Min drvie unit (mm) | 0.001 (1 um) | ||
| Best roughness(Ra.um) | Multi-cut:Ra0.8, Single-cut:Ra2.0 | ||
| XY driving motor | XY Panasonic AC servo | ||
| UVZ driving motor | DC servo motor | ||
| Tension system | three stage(0/1/2)tension adjustable | ||
| Cooalnt tank | 120L, with double filter, double motor | ||
| Power supply | 220/380/415V/ 50 or 60Hz, 3.0KVA | ||
| Weight (kg) | 1500 | 1900 | 2500 |
| Dimension (mm) | 1900*1800*2200 | 2100*2000*2200 | 2300*2200*2200 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
Test & Inspection
All machines will be tested before shipment.
Package & Delivery
