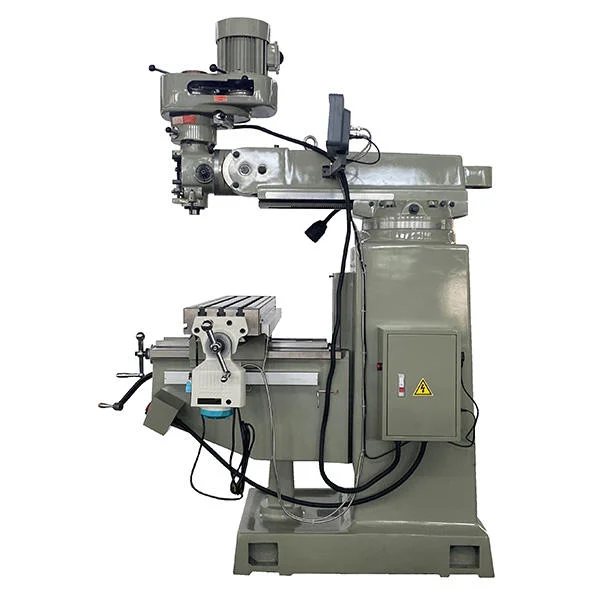

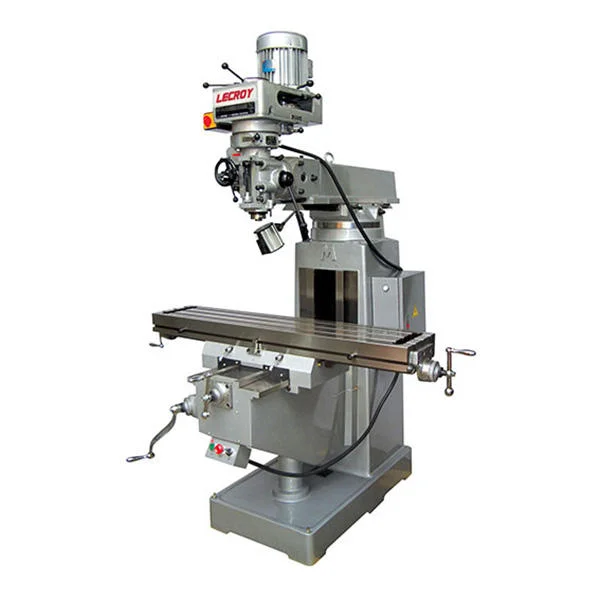

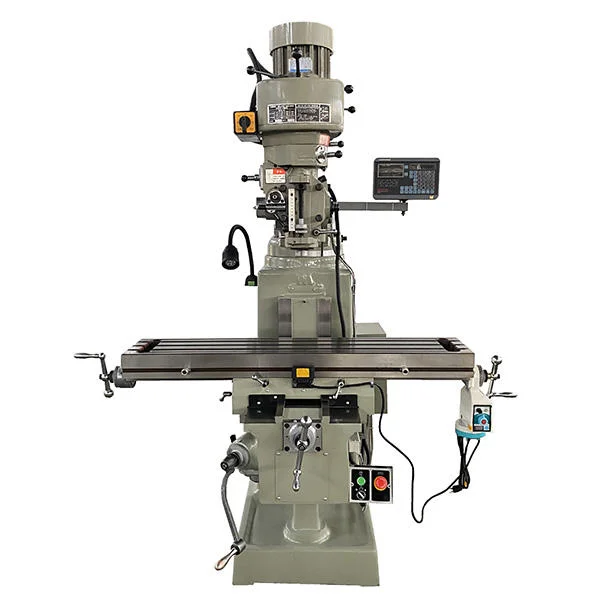

X6325 X6330 X6332 Universal Turret Milling Machine

Robust construction and heavy duty design.
Automatic Central Lubrication System.
The milling head is made of SCM-21. Imported from Taiwan.
The ram can swing 180°horizontally.
Standard guide rail : Dovetail with Turcite-B Coated.

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

Universal Lathe C6253 C6260 C6266

Variable Lathe FC180 210V

Product Details

Universal Turret Milling Machine

Main Features:

1.Robust construction and heavy duty design.

2.Automatic Central Lubrication System.

3.The milling head is made of SCM-21. Imported from Taiwan.

4.The ram can swing 180°horizontally.

5.Standard guide rail : Dovetail with Turcite-B Coated.

Optional:

• Rectangular guide rail

• Power quill feed

• DRO for XY or XYZ

• Machine plain vice

• Dividing head

Technical parameters:

Model	X6325	X6330	X6332
Working Table Size (mm)	254*1270	300*1370	320*1670
X/Y/Z Stroke (mm)	760/380/400	900/400/400	1080/450/460
T-Slot (mm)	3*16-65	3*16-80	3*16-80
Spindle Taper	R8 ( NT30)	R8 ( NT30)	NT40
Spindle Diameter (mm)	85.7	85.7	105
Spindle Speed (rpm)	66-4540
Steps of Spindle Speed	16
Spindle Travel (mm)	127	127	130
Distance from Spindle Nose to Table Surface (mm)	55-480	55-550	55-580
Distance from Spindle Vertical Guideway (mm)	175-500	140-520	140-620
Max. Turning Angle of Milling Head	±90° / ±45°	±90° / ±45°	±90° / ±45°
Milling Head Motor (kw)	2.25	2.25	3.75
Cooling Pump Motor (w)	40	40	40
Machine Dimension (mm)	167015002150	177016002150	2010017802350
Machine Weight (kg)	1400	1600	2000
