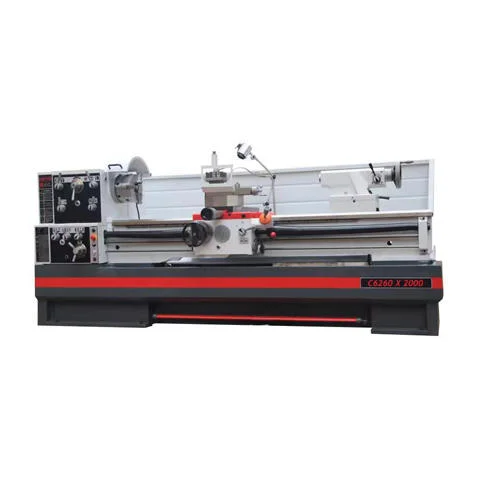

Universal Lathe C6253 C6260 C6266

Standard Accessories:
3 jaw chuck (250mm)
4 jaw chuck (320mm)
Steady rest
Follow rest
Face plate
Coolant system
Foot brake
Work lamp
Tool box with tools

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

Universal Lathe CQ6240

X6325 X6330 X6332 Universal Turret Milling Machine

Product Details

Universal Big Lathe

Model	C6253X1500	C6253X2000	C6260X1500	C6260X2000	C6266X1500	C6266X2000
Max.swing over bed (mm)	Φ530 (20 7/8")	Φ530 (20 7/8")	Φ600 (23 10/16")	Φ600 (23 10/16")	Φ660 (26 2/5")	Φ660 (26 2/5")
Max.swing over cross slide (mm)	Φ329 (12 31/32")	Φ329 (12 31/32")	Φ399 (15 3/4")	Φ399 (15 3/4")	Φ459 (13 4/5")	Φ459 (13 4/5")
Center height (mm)	265 (10 7/16")	265 (10 7/16")	300 (11 13/16")	300 (11 13/16")	330 (9 9/10")	330 (9 9/10")
Distance between center (mm)	1515/2015	1515/2015	1515/2015	1515/2015	1515/2015	1515/2015
Width of bed (mm)	400	400	400	400	400	400
Max.section of tool	25mm x 25mm (1" x 1")	25mm x 25mm (1" x 1")	25mm x 25mm (1" x 1")	25mm x 25mm (1" x 1")	25mm x 25mm (1" x 1")	25mm x 25mm (1" x 1")
Max.travel of cross slide (mm)	320 (12 5/8")	320 (12 5/8")	358 (14 1/8")	358 (14 1/8")	358 (14 1/8")	358 (14 1/8")
Max.travel of top slide (mm)	200 (7 7/8")	200 (7 7/8")	200 (7 7/8")	200 (7 7/8")	200 (7 7/8")	200 (7 7/8")
Spindle bore (mm)	Φ82 (3 1/4")	Φ82 (3 1/4")	Φ82 (3 1/4")	Φ82 (3 1/4")	Φ82 (3 1/4")	Φ82 (3 1/4")
Spindle nose	D1-8 or A1-8	D1-8 or A1-8	D1-8 or A1-8	D1-8 or A1-8	D1-8 or A1-8	D1-8 or A1-8
Taper of spindle bore	ME90/MT5	ME90/MT5	ME90/MT5	ME90/MT5	ME90/MT5	ME90/MT5
Spindle speed range (rpm)	20-1600 (12 steps)	20-1600 (12 steps)	20-1600 (12 steps)	20-1600 (12 steps)	20-1600 (12 steps)	20-1600 (12 steps)
Leadscrew diameter and thread (mm)	40 (1 9/16") x 4 T.P.I.	40 (1 9/16")x4 T.P.I.	40 (1 9/16")x4 T.P.I.	40 (1 9/16")x4 T.P.I.	40 (1 9/16")x4 T.P.I.	40 (1 9/16")x4 T.P.I.
Range of inch pitches	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)
Range of metric pitches	0.25-7 (24Nos)	0.25-7 (24Nos)	0.25-7 (24Nos)	0.25-7 (24Nos)	0.25-7 (24Nos)	0.25-7 (24Nos)
Diametral pitches DP	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)	4-112 (50 Nos)
Diametral pitches MP	0.25-14 (34 Nos)	0.25-14 (34 Nos)	0.25-14 (34 Nos)	0.25-14 (34 Nos)	0.25-14 (34 Nos)	0.25-14 (34 Nos)
Range of longitutinal feeds (mm/rev)	0.01-0.286	0.01-0.286	0.01-0.286	0.01-0.286	0.01-0.286	0.01-0.286
Range of longitudinal feeds (inch/rev)	0.0011-0.0316 (50Nos)	0.0011-0.0316 (50Nos)	0.0011-0.0316 (50Nos)	0.0011-0.0316 (50Nos)	0.0011-0.0316 (50Nos)	0.0011-0.0316 (50Nos)
Range of cross feeds (mm/rev)	0.01-0.286	0.01-0.286	0.01-0.286	0.01-0.286	0.01-0.286	0.01-0.286
Range of cross feeds (inch/rev)	0.00024-0.0068 (50Nos)	0.00024-0.0068 (50Nos)	0.00024-0.0068 (50Nos)	0.00024-0.0068 (50Nos)	0.00024-0.0068 (50Nos)	0.00024-0.0068 (50Nos)
Travel of tailstock sleeve quill (mm)	180 (7 5/64")	180 (7 5/64")	180 (7 5/64")	180 (7 5/64")	180 (7 5/64")	180 (7 5/64")
Dia. of tailstock sleeve (mm)	Φ80 (2 61/64")	Φ80 (2 61/64")	Φ80 (2 61/64")	Φ80 (2 61/64")	Φ80 (2 61/64")	Φ80 (2 61/64")
Main motor power (kw)	7.5	7.5	7.5	7.5	7.5	7.5
Coolant pump power (w)	90	90	90	90	90	90
