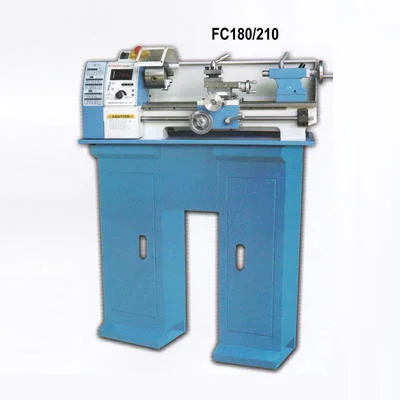

Variable Lathe FC180 210V

Standard Accessories:
* Speed display
* 3-jaw chuck Φ100
* Splash guard
* Chip pan
* Chuck protection
* Tool turret protection
* Tool turret wrench
* Steady center MT3/MT2
* Change gears
* Tool box & tools

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

X6325 X6330 X6332 Universal Turret Milling Machine

Variable Lathe FC250V 280V

Product Details

Standard Accessories:

* Speed display

* 3-jaw chuck Φ100

* Splash guard

* Chip pan

* Chuck protection

* Tool turret protection

* Tool turret wrench

* Steady center MT3/MT2

* Change gears

* Tool box & tools

Optional Accessories:

* Steady rest

* Follow rest

* Face plate

* Working bench

* 4-jaw chuck Φ100

* Live center MT3/MT2

* Halogen lamp

* Thread chasing dial

Technical Parameters:

Model	FC180x300V	FC210x400V
Max.swing over bed (mm)	180	210
Distance between centers (mm)	300	400
Spindle bore (mm)	21	21
Taper of spindle bore	MT3	MT3
Range of spindle speed (rpm)	50-2500	50-2500
Tape of tailstock quill	MT2	MT2
Range of metric threads (mm)	0.5-3	0.3-3
Range of inch threads	8-44T.P.I	10-44T.P.I
Motor power (w)	600	600
N.W. weight (Kg)	75	105
G.W. weight (Kg)	95	125
Packing dimension (LxWxH) (mm)	820x480x470	980x560x580
