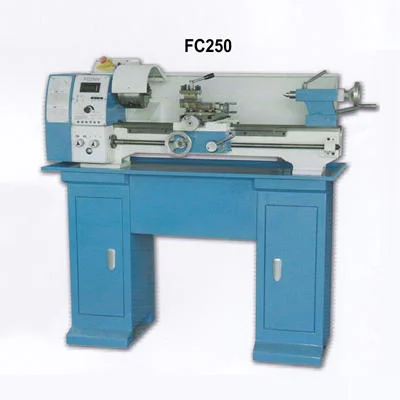

Variable Lathe FC250V 280V

Standard Accessories:
* Speed display
* 3-jaw chuck Φ125
* Splash guard
* Chip pan
* Chuck protection
* Tool turret protection
* Tool turret wrench
* Steady center MT3/MT2
* Change gears
* Tool box & tools

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

Variable Lathe FC180 210V

Variable Lathe FC290V 300V

Product Details

Standard Accessories:

* Speed display

* 3-jaw chuck Φ125

* Splash guard

* Chip pan

* Chuck protection

* Tool turret protection

* Tool turret wrench

* Steady center MT3/MT2

* Change gears

* Tool box & tools

Optional Accessories:

* Steady rest

* Follow rest

* Face plate

* Working bench

* 4-jaw chuck Φ125

* Live center MT3/MT2

* Halogen lamp

* Thread chasing dial

Technical Parameters:

Model	FC250Vx550/750	FC280Vx700
Max.swing over bed (mm)	250	280
Distance between centers (mm)	550/750	700
Spindle bore (mm)	26	26
Taper of spindle bore	MT4	MT4
Range of spindle speed (rpm)	50-2500/125-2000	50-2500
Tape of tailstock quill	MT2	MT2
Range of metric threads (mm)	0.2-3.5	0.2-4
Range of inch threads	8-56T.P.I	8-56T.P.I
Motor power (w)	750	1500
N.W. weight (Kg)	125/135	200
G.W. weight (Kg)	150/160	230
Packing dimension (LxWxH) (mm)	1220/1400x480x470	1450x700x680
