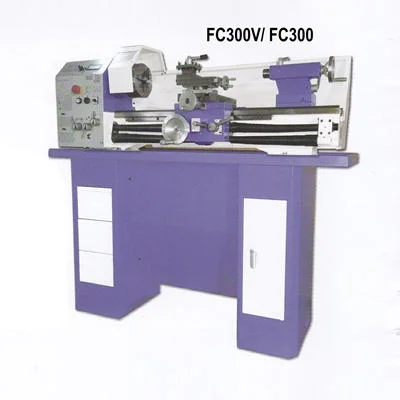

Variable Lathe FC290V 300V

Standard Accessories:
* Speed display
* 3-jaw chuck Φ160
* Splash guard
* Chip pan
* Chuck protection
* Tool turret protection
* Tool turret wrench
* Steady center MT3/MT2
* Change gears
* Tool box & tools

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

Variable Lathe FC250V 280V

Variable Lathe MFT250V 280V

Product Details

Standard Accessories:

* Speed display

* 3-jaw chuck Φ160

* Splash guard

* Chip pan

* Chuck protection

* Tool turret protection

* Tool turret wrench

* Steady center MT3/MT2

* Change gears

* Tool box & tools

Optional Accessories:

* Steady rest

* Follow rest

* Face plate

* Working bench

* 4-jaw chuck Φ160

* Live center MT3

* Halogen lamp

* Thread chasing dial

Technical Parameters:

Model	FC290Vx700	FC300Vx700
Max.swing over bed (mm)	290	300
Distance between centers (mm)	700	700
Spindle bore (mm)	38	38
Taper of spindle bore	MT5	MT5
Range of spindle speed (rpm)	80-2000	80-2000
Tape of tailstock quill	MT3	MT3
Range of metric threads (mm)	0.2-3.5	0.2-3.5
Range of inch threads	8-48T.P.I	8-48T.P.I
Motor power (w)	1500	1500
N.W. weight (Kg)	250	260
G.W. weight (Kg)	270	280
Packing dimension (LxWxH) (mm)	1450x720x680	1500x720x680
