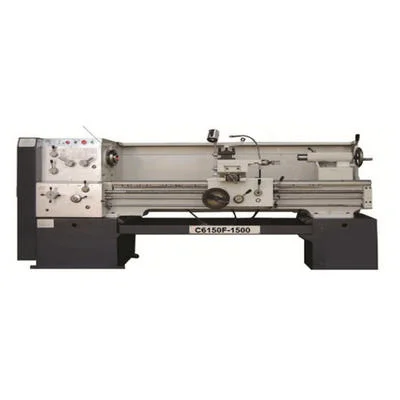

Heavy Duty Universal Lathe Machine
Head stock gear precision grinding, low noise.
Foot brake/electro magnetic brakeis optional.
Carriage optional: left hand OR right hand.
Big slide can be:common,fast forward or tapered structure.
Ball screw can be Metric or British system.
Foot brake/electro magnetic brake is optional.
Main Features:
1.Bed rail passed high-frequency quenching, grinding,high precision.
2.Head stock gear precision grinding, low noise.
3.Foot brake/electro magnetic brakeis optional.
4.Carriage optional: left hand OR right hand.
5.Big slide can be:common,fast forward or tapered structure.
6.Ball screw can be Metric or British system.
7.Foot brake/electro magnetic brake is optional.
Technical parameters:
| odel | C6136F | C6140F | C6150F | C6160F |
| C6236F | C6240F | C6250F | C6260F | |
| Max swing over bed | 360mm | 400mm | 500mm | 600mm |
| Max swing over gap | 520mm | 560mm | 660mm | 760mm |
| Effective length of gap | 160mm | 130mm | 130mm | 130mm |
| Max swing over slide | 190mm | 230mm | 310mm | 360mm |
| Cross slide travel ( X ) | 180 | 210 | 260 | 310 |
| Center distance ( L ) | 750mm,1000mm,1500mm,2000mm,3000mm | |||
| Bed width | 360mm | |||
| Spindle hole | 52mm / 82mm | |||
| Spindle nose | ISO-C6 or ISO-C8 | |||
| Spindle taper | MT6 / 1:20 | |||
| Spindle speeds (number) | 42-1600 rmp | 28-1800rpm ( 12 steps) | ||
| Metric thread range(kinds) | 0.5-14mm (21 kinds) | |||
| Inch thread range(kinds) | 2.5-72inch (30 kinds) | |||
| Diameter thread range | 0.25-7 mπ (17 kinds) | |||
| Module threads range(kinds) | 5-144 D.P.I ( 30 kinds) | |||
| Cross slide trave | 220mm | |||
| Compound rest travel | 120mm | |||
| Tool shank size | 20mm×20mm | |||
| Taper of tailstock sleeve | MT4 / MT5 | |||
| Diameter of tailstock sleeve | 65mm / 75mm | |||
| Travel of tailstock sleeve | 130mm | |||
| Main motor power | 4.0kw | 5.5kw | 5.5kw | 7.5kw |
| Cooling bump motor | 0.125kw | |||
| Rapid motor | 0.12kw | |||
| Standard Accessories | Optional Accessories | ||||
| 1. 3-jaw chunk | 1. Steady rest | 6. Longitudinal automatic trip | |||
| 2. Centre＆centre sleeve | 2. Follower rest | 7. Live center | |||
| 3. Wrenches | 3. 4-jaw chunk | 8. Quick change toolpost | |||
| 4. Feet bolts. | 4. Face plate | 9. Taper copy ruler | |||
| 5. Thread chasing dial | 10. Driving plate | ||||
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square meter work shop.
The main parts of our machines are processed by cnc machine. We have gantry type cnc milling machine, cnc vertical machining center, gantry type cnc grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing machine.
All machines will be tested before shipment.
