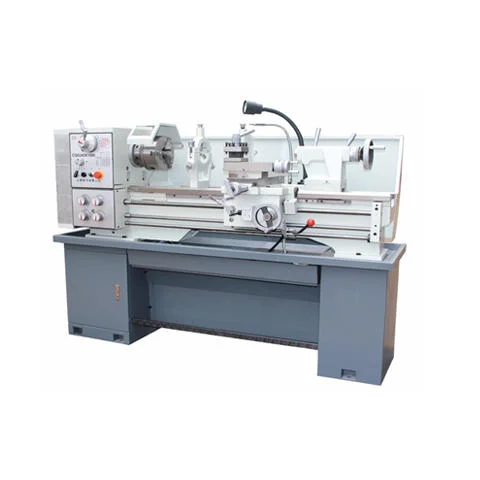

Universal Lathe CQ6240
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Ball screw can be Metric or British system.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Universal Manual Precise Lathe
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Ball screw can be Metric or British system.
Standard Accessories
3-jaw chuck
Coolant system
Foot brake
Work light
Oil tray
Splash guard
Dead center
Foot stand
Optional Accessories
Steady rest
Follower rest
4-jaw chunk
Face plate
Live center
Quick change toolpost ( America/ Europe)
Taper Turing device
DRO ( 2 axis, 3 axis)
CE cover
Technical Parameters:
| Model | CQ6240 | |
| Max swing over bed | 400mm | |
| Max swing over gap | 520mm | |
| Max swing over slide | 250mm | |
| Length of gap | 260mm | |
| Max. distance between center | 1080mm | |
| Bed width | 218 mm | |
| Spindle hole | 52mm | |
| Spindle nose / Taper | D1-5 / MT #6 | |
| Spindle speeds | 65- 1810 rmp | |
| Range of longitudinal feeding | 0.0021"-0.0508" 0.0527-1.2912mm/rev. | |
| Range of cross feeding | 0.00043"-0.0109" 0.011-0.276mm/rev. | |
| Tool shank size | 20×20mm | |
| Metric thread pitches | 0.4-7.0 mm | |
| Imperial thread pitches | 4-60 T.P.I. | |
| Quill taper of tailstock sleeve | MT4 | |
| Qill travel | 100mm | |
| Main motor power | 2.2KW (3 HP) | |
| Coolant pump motor power | 40W ( 1/16 HP) | |
| Dimension(mm) | 2100×760×1500mm | |
| Weight N/G (kg) | 640/750kg | |
