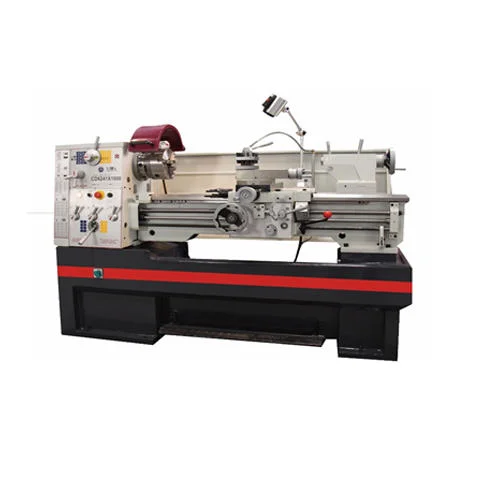

Universal Lathe CD6241
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Ball screw can be Metric or British system.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Universal Precise Lathe
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Ball screw can be Metric or British system.
Standard Accessories
3-jaw chuck / 4-jaw chuck
Chasing gear set
Thread chasing dial / Face plate
Reduction sleeve
Steady rest / Follow rest
Splash guard
Tail stock / Dead center
Foot brake
Optional Accessories
Taper Turing device
Live center
Leadscrew guard
Drill chuck and Arbor
Quick change toolpost ( America/ Europe)
DRO ( 2 axis, 3 axis)
CE cover ( chuck guard)
Technical Parameters:
| Model | CD6241 | |
| Max swing over bed | 410mm ( 16") | |
| Max swing over gap | 580mm ( 23") | |
| Max swing over slide | 255mm ( 10") | |
| Length of gap | 210mm ( 8-1/4") | |
| Center height( mm) | 205mm ( 8") | |
| Max. distance between center | 1000mm ( 40") /1500mm ( 60") | |
| Bed width | 250mm ( 10") | |
| Spindle hole | 52mm ( 2") | |
| Spindle nose | D1-6 | |
| Spindle speeds ( steps ) | 45-1800 rmp (16 steps) | |
| Cross slide travel | 210mm ( 8-1/2") | |
| Compund rest travel | 140mm ( 5-1/2") | |
| Lead screw thread | 4 T.P.I | |
| Tool shank size | 20×20 mm ( 13/16" × 13/16"） | |
| Imperial thread pitches | 45 Nos. 2-72 T.P.I. | |
| Metric thread pitches | 39 Nos. 0.2-14mm | |
| Longitudinal feeds Imperial | 17Nos. 0.002-0.067"/rev | |
| Longitudinal feeds Metric | 17Nos. 0.05-1.7mm/rev | |
| Cross feeds Imperial | 17Nos. 0.001-0.0335"/rev | |
| Cross feeds Metric | 17Nos. 0.025-0.85mm/rev | |
| Range of Diameter pitch | 21 Nos. 8-44 D.P. | |
| Range of Module pitch | 18Nos. 0.3-3.5 M.P. | |
| Quill taper of tailstock sleeve | MT4 | |
| Qill travel / Diameter | 120mm ( 4-3/4") / 50mm ( 2") | |
| Main motor power | 2.2 /3.3kw (3/ 4.5 HP) , Optional: 3.0/4.5kw | |
| Dimension(mm) | 2030 ( 2530)×860×1620mm | |
| Weight N/G (kg) | 1200/1400kg | |
