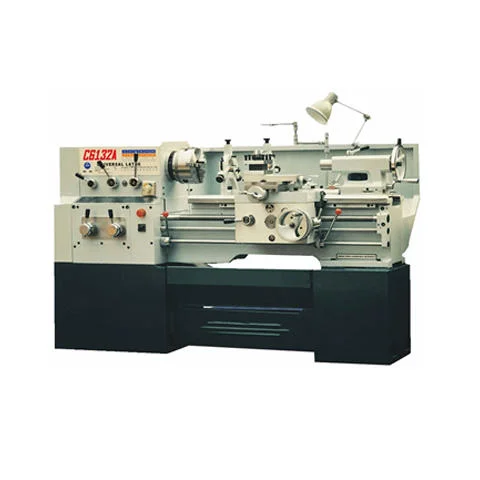

Universal Lathe C6132 6140A
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diameter workpiece.
Carriage optional: left hand OR right hand.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Universal Heavy Duty Lathe (with/wothout gap)
Robust casting bed, Eurpean design.
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diameter workpiece.
Carriage optional: left hand OR right hand.
Standard Accessories
3-jaw chuck
Splash guard
Face plate
Thread chasing dial
Tail stock / Dead center
Optional Accessories
4-jaw chuck
Chuck guard
Live center
Taper Turing device
Drill chuck and Arbor
Quick change toolpost ( America/ Europe)
Steady rest / Follow rest
DRO ( 2 axis, 3 axis)
Technical Parameters:
| Model | C6131A/6232A | C6140A/6240A |
| Max swing over bed | 360mm | 400mm |
| Max swing over gap | 540mm | 585mm |
| Max swing over slide | 200mm | 245mm |
| Length of gap | 200mm | |
| Max. distance between center | 750 / 1000mm | |
| Bed width | 320 mm | |
| Spindle hole | Φ46 / 52 mm | |
| Spindle nose / Taper | D1-6 / MT# 6 | |
| Spindle speeds ( steps) | 25 -1600 rmp (12 steps) | |
| Cross slide travel | 240 mm | |
| Compound rest travel | 140 mm | |
| Tool shank size | 25×25mm | |
| Lead screw Pitch | 4 T.P.I / 6mm | |
| Imperial thread pitches | 4-60 T.P.I. | |
| Metric thread pitches | 0.4-7.0 mm | |
| Feed change | 138 steps | |
| Range of longitudinal feeds | 0.04-2.16 mm/rev | |
| Range of cross feeds | 0.02-1.08 mm/rev | |
| Metric thread pitches | 30 kinds | |
| Imperial thread pitches | 35 kinds | |
| Diametrical pitches range | 50 kinds | |
| Module pitches range | 25 kinds ( 0.25-10mm) | |
| Quill taper of tailstock sleeve | MT4 | |
| Travel/ Diameter of tailstock sleeve | 130mm / 50mm | |
| Main motor power | 3.0 / 4.5kw | |
| Package size | 2000 ( 2270)×1050×1470mm | |
| Weight N/G | 1300/ 1400 kg | |
