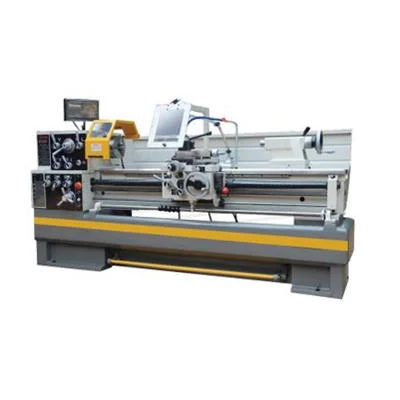

Universal Lathe C6241 6246
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diameter workpiece.
Carriage optional: left hand OR right hand.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Universal Heavy Duty Lathe (with/wothout gap)
Robust casting bed, Eurpean design.
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diameter workpiece.
Carriage optional: left hand OR right hand.
Standard Accessories
3-jaw chuck, 4 _jaw chuck
Change gears set
Face plate
Thread chasing dial
Reduction sleeve
Splash guard
Tail stock / Dead center
Steady rest / Follow rest
Foot brake
Optional Accessories
Leadscrew guard
Chuck guard
Live center
Taper Turing device
Drill chuck and Arbor
Quick change toolpost ( America/ Europe)
Localizer
DRO ( 2 axis, 3 axis)
Technical Parameters:
| Model | C6241 | C6246 |
| Max swing over bed | 410mm | 460mm |
| Max swing over gap | 640mm | 690mm |
| Max swing over slide | 224mm | 274mm |
| Length of gap | 155mm | |
| Max. distance between center | 1000 / 1500mm | |
| Bed width | 300 mm | |
| Spindle hole | Φ58 / 82 mm | |
| Spindle nose / Taper | D1-6 / MT# 6 | |
| Spindle speeds ( steps) | 25 -2000 rmp (12 steps) | |
| Cross slide travel | 290 mm | |
| Compound rest travel | 120 mm | |
| Tool shank size | 25×25mm | |
| Lead screw Pitch | 4 T.P.I / 6mm | |
| Imperial thread pitches | 4-60 T.P.I. | |
| Metric thread pitches | 0.4-7.0 mm | |
| Range of longitudinal feeds | 42 kinds 0.031-1.7 mm/rev | |
| Range of cross feeds | 42 kinds 0.014-0.784 mm/rev | |
| Metric thread pitches | 41 kinds 0.1-14mm | |
| Imperial thread pitches | 60 kinds 2-112 T.P.I. | |
| Diametrical pitches range | 50 kinds 4-112 D.P. | |
| Module pitches range | 34 kinds 0.1-7.0 M.P. | |
| Quill taper of tailstock sleeve | MT4 | |
| Travel/ Diameter of tailstock sleeve | 120mm / 60mm | |
| Main motor power | 5.5kw | |
| Coolant pump motor power | 90w | |
