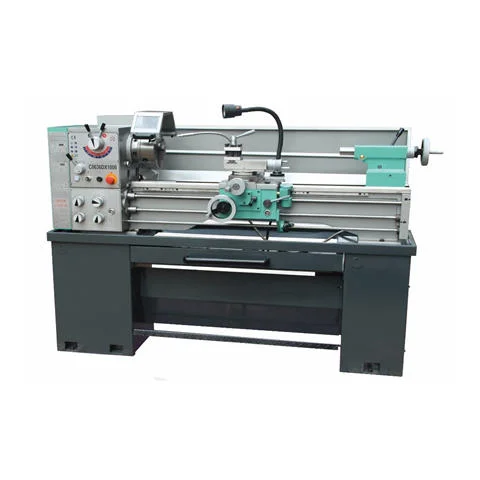

Universal Lathe C0636A
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Ball screw can be Metric or British system.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Universal Manual Precise Lathe
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Ball screw can be Metric or British system.
Standard Accessories
3-jaw chuck
Coolant system
Foot brake
Work light
Oil tray
Splash guard
Dead center
Foot stand
Optional Accessories
Steady rest
Follower rest
4-jaw chunk
Face plate
Live center
Quick change toolpost ( America/ Europe)
Taper Turing device
DRO ( 2 axis, 3 axis)
CE cover
Technical Parameters:
| Model | C0636A | |
| Max swing over bed | 360mm ( 14") | |
| Max swing over gap | 502mm ( 19-3/4") | |
| Max swing over slide | 224mm ( 18-13/16") | |
| Length of gap | 210mm ( 8-1/4") | |
| Center height( mm) | 180mm ( 7") | |
| Max. distance between center | 1000mm ( 40") | |
| Bed width | 187mm | |
| Spindle hole | 52mm | |
| Spindle nose | MT5 | |
| Spindle speeds (number) | 70-2000 rmp (8 stages) | |
| Cross slide travel | 170mm ( 6-11/16") | |
| Compund rest travel | 95mm ( 3-9/16") | |
| Lead screw thread | 8 T.P.I or 3mm pitch | |
| Tool shank size | 16×16mm ( 5/8" × 5/8"） | |
| Imperial thread pitches | 34Nos. 4-56 T.P.I. | |
| Metric thread pitches | 26Nos. 0.4-7.0 M.P | |
| Longitudinal feeds Imperial | 32Nos. 0.002-0.548"/rev | |
| Longitudinal feeds Metric | 32Nos. 0.052-0.392mm/rev | |
| Cross feeds Imperial | 32Nos. 0.007-0.0187"/rev | |
| Cross feeds Metric | 32Nos. 0.014-0.0380mm/rev | |
| Quill taper of tailstock sleeve | MT4 | |
| Qill travel | 100mm ( 3-15/16") | |
| Main motor power | 1.5kw (2 HP) | |
| Coolant pump motor power | 40w ( 1/16 HP) | |
| Dimension(mm) | 1930×760×1530mm | |
| Weight N/G (kg) | 540/645kg | |
