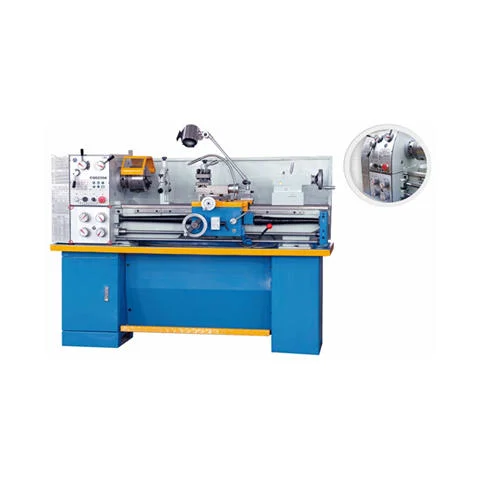

Universal Lathe CQ6230 6232
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Universal Manual Precise Lathe
High-frequency quenching, grinding for rail.
Headstock gear precision grinding, low noise.
Removable gap is provided for big diamete workpiece.
Carriage optional: left hand OR right hand.
Standard Accessories
3-jaw chuck
Change gears set
Work light
Oil tray
Splash guard
Dead center/ Reduction sleeve
Foot stand
Tool box and Oil gun
Optional Accessories
Steady rest
Follower rest
4-jaw chunk
Face plate
Live center
Taper Turing device
Quick change toolpost ( America/ Europe)
Localizer
DRO ( 2 axis, 3 axis)
Foot brake
Coolant system
CE cover ( chuck guard, Leadscrew guard)
Technical Parameters:
| Model | CQ6230A / CQ6232C | |
| Max swing over bed | 310mm / 330mm | |
| Max swing over gap | 450mm / 470mm | |
| Max swing over slide | 180mm | |
| Length of gap | 140mm | |
| Max. distance between center | 750 / 910 / 1000mm | |
| Bed width | 181 mm | |
| Spindle hole | 38 mm | |
| Spindle nose | MT5 | |
| Spindle speeds ( steps) | 65-1810 rmp (8 steps) | |
| Cross slide travel | 130 mm | |
| Compund rest travel | 75 mm | |
| Tool shank size | 16×16mm ( 5/8" × 5/8"） | |
| Imperial thread pitches | 4-60 T.P.I. | |
| Metric thread pitches | 0.4-7.0 mm | |
| Longitudinal feeds Metric | 0.0527-1.2912 mm/rev | |
| Cross feeds Metric | 0.11-0.276 mm/rev | |
| Quill taper of tailstock sleeve | MT3 | |
| Qill travel | 100mm | |
| Main motor power | 1.5kw | |
| Coolant pump motor power | 40w | |
| Dimension(mm) | 1900×740×1520mm | |
| Weight (kg) | 480kg | |
