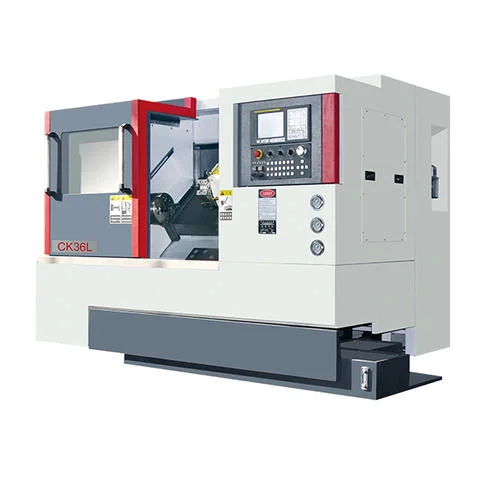

30° Slant Bed CNC Turning Machine

30°slant bed.
High quality resin sand casting.
XZ axis linear rail.

E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736

sales@wxbofeng.com

+86 13771407736

CK-40L CK-50L Heavy Duty Slant Bed CNC Lathe Machine

45° Slant Bed CNC Turning Machine

Product Details

Small CNC Lathe Slant Bed, Linear Rail

1.30°slant bed.

2.High quality resin sand casting.

3.XZ axis linear rail.

Technical Parameters:

Model	CK40L	CK50L
Max. swing over bed (mm)	400	540
Max. swing over carriage(mm)	280	350
Max. cutting length(mm)	500/750	500/750
Max. spindle speed(r/min)	4500	3000
Spindle nose	A2-6	A2-8
Spindle bore(mm)	Φ62	Φ90
Bar diameter(mm)	Φ48	Φ75
Hydraulic chuck (mm/Inch)	200 / 8"	250 / 10"
Spindle motor power(kw)	7.5/11 ( servo)	11/15 ( servo)
Tool number (pcs)	Hydraulic: 8	Hydraulic: 8 /12
Tool Shank size(mm)	25*25	25*25
X Axis travel(mm)	240	280
Z Axis travel(mm)	500/750	750
X/Z Axis rapid feeding(m/min)	18 / 20	18 / 20
Max. Cutting feed speed(mm/min)	5000	5000
Tail stock ( Dia/ travel)	MT5 75 / 80	MT5 90 / 120
Weight (kg)	3000	4500
Overall dimension(mm)	2800/3150x1800x1800	3500/3850×1900×1900
