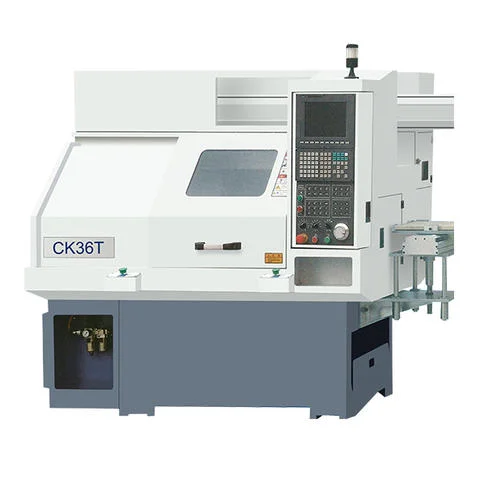

CK-32T CK-36T Slant Bed CNC Lathe Machine
High quality resin sand casting.
XZ axis linear rail.
Small CNC Lathe Slant Bed, Linear Rail
1.30°slant bed.
2.High quality resin sand casting.
3.XZ axis linear rail.
Technical Parameters:
| Model | CK32T | CK36T |
| Max. swing over bed (mm) | 320 | 360 |
| Max. swing over carriage(mm) | 90 | 150 |
| Max. cutting length(mm) | 400 | 400 |
| Max. spindle speed(r/min) | 260 | 260 |
| Spindle nose | A2-4 | A2-5 |
| Spindle bore(mm) | 46 | 56 |
| Chuck (Inch) | 5" | 6" |
| Spindle motor power(kw) | 4 | 5.5 |
| Tool Shank size(mm) | 20*20 | 20*20 |
| X Axis travel(mm) | 350 | 350 |
| Z Axis travel(mm) | 420 | 420 |
| X/Z Axis rapid feeding(m/min) | 16/18 | 16/18 |
| Weight (kg) | 1500 | 1900 |
| Overall dimension(mm) | 2070*1100*1500 | 2070*1100*1500 |
