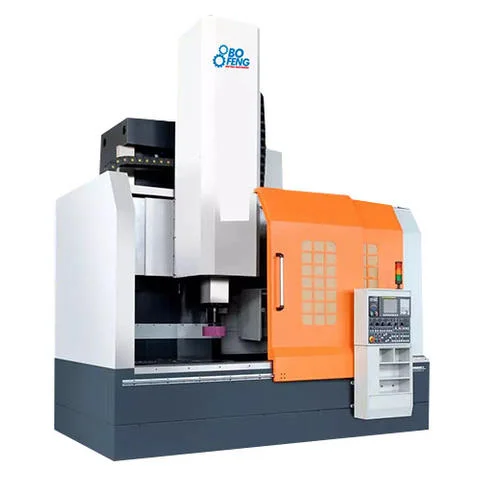

Vertical CNC Turning Machine
Corss beam equipped with steel guide rail, composite structure with rolling and sliding, less friction.
Rotary gear with precise grinding process, with Germany ZF gear box to reach big torque and high speed.
With dividing function for working table, also install self-centering hydraulic brake.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Adopt wider square boxway guide rail, with heavy capacity and shock resistance.
Corss beam equipped with steel guide rail, composite structure with rolling and sliding, less friction.
Rotary gear with precise grinding process, with Germany ZF gear box to reach big torque and high speed.
With dividing function for working table, also install self-centering hydraulic brake.
Optional: Install BT50 as second spindle.
Technical Parameters:
| Model | CK5112 | ||
| CK5112A | CK5112ATC | CK5112ATC+C | |
| Working table Dia. (mm) | 1200 | ||
| Max. Turning Dia. (mm) | 1400 | ||
| Max. Turning Height (mm) | 1200/1400/1600 | ||
| Max. load on working table (kg) | 5000 | ||
| Max. X travel (mm) | -150 ~ 850 | -150 ~ 1150 | -150 ~ 1150 |
| Max. Z travel (mm) | 800/1000/1200 | 800/1000 | |
| Max. spindle speed (rpm) | 350 | ||
| Max . Torque of spindle ( N.M) | 8000 | ||
| C axis spindle speed (rpm) | 4000 | ||
| X rapid moving speed （mm/min) | 6000 | ||
| Z rapid moving speed （mm/min) | 6000 | ||
| Max. cutting feeding rate (mm/min) | 2000 | ||
| Tool magazine ( ATC) | electric post tool changer 4 /5 position | 12 | 12 |
| Tool shank | BT50 | BT50 | |
| Max. tool size (mm) | 280*150*400 | 280*150*400 | |
| Max. tool weight ( kg) | 50 | 50 | |
| Max. loading weight of ATC (kg) | 360 | 360 | |
| Tool changing time | 45 | 45 | |
| Spindel motor ( kw) | 22 / 30 | ||
| X servo motor Torque ( N.M) | 40 | ||
| Z servo motor Torque ( N.M) | 40 | ||
| C axis servo motor | 5.5 / 7.5 | ||
| Max. Power ( KW) | 50 | 50 | 60 |
| Max cover area ( L*W) (mm) | 3200*3300 | 4200*3300 | 4200*3300 |
| Machine weight (kg) | 16000 | 16000 | 17000 |
| Model | CK5116 | ||
| CK5116A | CK5116ATC | CK5116ATC+C | |
| Working table Dia. (mm) | 1500 | ||
| Max. Turning Dia. (mm) | 1730 | ||
| Max. Turning Height (mm) | 1200/16400/2000 | ||
| Max. load on working table (kg) | 8000 | ||
| Max. X travel (mm) | -150 ~ 1150 | -150 ~ 1350 | -150 ~ 1350 |
| Max. Z travel (mm) | 800/1000/1200 | 800/1000 | |
| Max. spindle speed (rpm) | 300 | ||
| Max . Torque of spindle ( N.M) | 12000 | ||
| C axis spindle speed (rpm) | 3000 | ||
| X rapid moving speed （mm/min) | 6000 | ||
| Z rapid moving speed （mm/min) | 6000 | ||
| Max. cutting feeding rate (mm/min) | 2000 | ||
| Tool magazine ( ATC) | electric post tool changer 4 /5 position | 12 | 12 |
| Tool shank | BT50 | BT50 | |
| Max. tool size (mm) | 280*150*400 | 280*150*400 | |
| Max. tool weight ( kg) | 50 | 50 | |
| Max. loading weight of ATC (kg) | 360 | 360 | |
| Tool changing time | 45 | 45 | |
| Spindel motor ( kw) | 30 / 37 | ||
| X servo motor Torque ( N.M) | 40 | ||
| Z servo motor Torque ( N.M) | 40 | ||
| C axis servo motor | 5.5 / 7.5 | ||
| Max. Power ( KW) | 60 | 60 | 70 |
| Max cover area ( L*W) (mm) | 3500*3800 | 4500*3800 | 4500*3800 |
| Machine weight (kg) | 20000 | 20000 | 21000 |
| Model | CK5120 | ||
| CK5120A | CK5120ATC | CK5120ATC+C | |
| Working table Dia. (mm) | 2000 | ||
| Max. Turning Dia. (mm) | 2200 | ||
| Max. Turning Height (mm) | 1600/2000 | ||
| Max. load on working table (kg) | 1000 | ||
| Max. X travel (mm) | -300 ~ 1250 | -300 ~ 1550 | -300 ~ 1550 |
| Max. Z travel (mm) | 1000/1200 | 1000 | |
| Max. spindle speed (rpm) | 200 | ||
| Max . Torque of spindle ( N.M) | 25000 | ||
| C axis spindle speed (rpm) | 3000 | ||
| X rapid moving speed （mm/min) | 6000 | ||
| Z rapid moving speed （mm/min) | 6000 | ||
| Max. cutting feeding rate (mm/min) | 2000 | ||
| Tool magazine ( ATC) | electric post tool changer 4 /5 position | 12 | 12 |
| Tool shank | BT50 | BT50 | |
| Max. tool size (mm) | 280*150*400 | 280*150*400 | |
| Max. tool weight ( kg) | 50 | 50 | |
| Max. loading weight of ATC (kg) | 360 | 360 | |
| Tool changing time | 45 | 45 | |
| Spindel motor ( kw) | 37 / 45 | ||
| X servo motor Torque ( N.M) | 40 | ||
| Z servo motor Torque ( N.M) | 40 | ||
| C axis servo motor | 7.5 / 11 | ||
| Max. Power ( KW) | 70 | 70 | 80 |
| Max cover area ( L*W) (mm) | 5500*5000 | 6200*5200 | 6200*5200 |
| Machine weight (kg) | 28000 | 28000 | 30000 |
