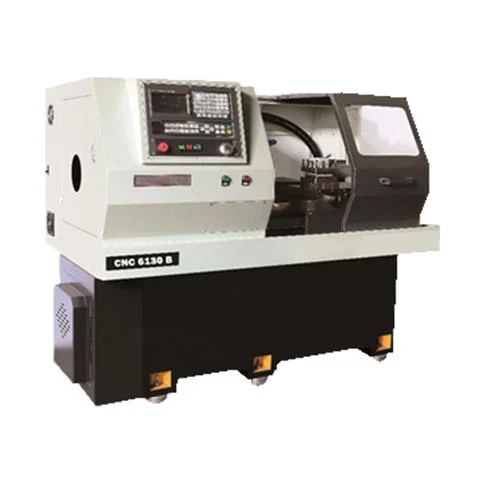

CNC6130B CNC6140A Samll Flat Bed CNC Lathe Machine
Bed frame are made of high quality resin sand, aging rail super audio quenching, good wear resistance .
Rail laminating process, improve the wear and equipment life span.
Centralized lubrication unit, components are effectively fully lubricated, full-length equipment life.
Dual three tendons rail type, center screw, reasonable layout, compact structure, the overall high rigidity.
Full protective rails, effectively prevent chips, chips fluid into the inner rail.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Main Features:
1. Fully enclosed sheet metal, and fully guarantee the safety and reliability of operation.
2. Bed frame are made of high quality resin sand, aging rail super audio quenching, good wear resistance .
3. Rail laminating process, improve the wear and equipment life span.
4. Centralized lubrication unit, components are effectively fully lubricated, full-length equipment life.
5. Dual three tendons rail type, center screw, reasonable layout, compact structure, the overall high rigidity.
6. Full protective rails, effectively prevent chips, chips fluid into the inner rail.
Technical Parameters:
| Item | Parameter | CNC6130B | CNC6140A |
| Capacity | Max.swing over bed | Φ330mm | Φ460mm |
| Max.swing over slide | Φ96mm | Φ160mm | |
| Max.workpiece length | 300mm | 380mm | |
| Bar diameter | Φ35mm | Φ50mm | |
| Spindle | Maximum spindle speed | 2500rpm | 2500rpm |
| Dia of spindle bore | Φ43mm | Φ57mm | |
| Spindle taper | 39° | MT6 | |
| Rapid traverse | X-axis rapid traverse | 6m/min | 6m/min |
| Z-axis rapid traverse | 8m/min | 8m/min | |
| Axis stroke | X-axis limit travel | 275mm | 300mm |
| Z-axis limit travel | 330mm | 450mm | |
| Tool | Tool post/turret | Linear multi-position row turret OR 4- station electric tool turret | |
| Shank size | 20*20mm | 25*25mm | |
| Tail Stock | Sleeve diameter | Φ50mm | Φ50mm |
| Sleeve travel | 80mm | 80mm | |
| Sleeve taper | MT3 | MT3 | |
| Others | Min setting unit | X axis:0.001mm Z axis:0.001mm | |
| Spindle motor power | 3Kw | 5.5Kw | |
| Dimension(L*W*H) | 1800X1150X1700mm | 2400X1310X1730mm | |
| Weight | 1100Kg | 1800Kg | |
