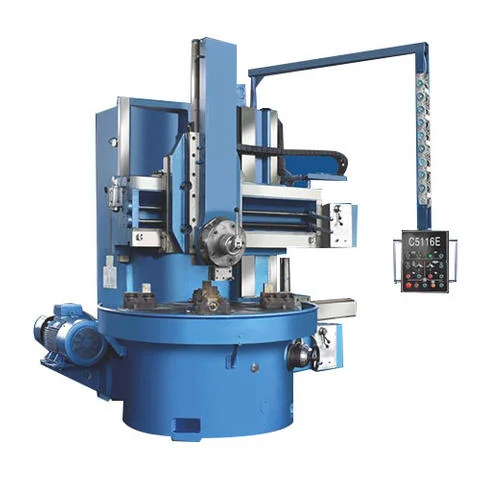

Single Column Vertical Lathe
Boxway rail for heavy capacity.
Italian turcite for all sliding rails to decrease friction.
Rotary gear with precise grinding process, with gearbox to reach big torque and high speed.
C5112G 5116G 5120G 5123G: PLC control
CJK5112G 5116G 5120G 5123G: CNC control ( CNC System: GSK, SYNTEC, FANUC, Simens)
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Adopt dydrostatic guideway with preload bearing for working table, less friction.
Boxway rail for heavy capacity.
Italian turcite for all sliding rails to decrease friction.
Rotary gear with precise grinding process, with gearbox to reach big torque and high speed.
C5112G 5116G 5120G 5123G: PLC control
CJK5112G 5116G 5120G 5123G: CNC control ( CNC System: GSK, SYNTEC, FANUC, Simens)
Technical Parameters:
| Model | C5112G | C5116G | C5120G | C5123G |
| CJK5112G | CJK5116G | CJL5120G | CJK5123G | |
| Max.Turning Dia.(mm) | 1250 | 1600 | 2000 | 2300 |
| Working Table Dia.(mm) | 1000 | 1400 | 1800 | 2000 |
| Max. Height of Workpiece (mm) | 1000/1200/1400 | 1000/1400/1600 | 1250/1600/1800 | 1250/1600/1800 |
| Max.Weight of Workpiece (T) | 5 | 8 | 10 | 10 |
| Max.Cutting Force of Rail Head (KN) | 20 | 25 | 25 | 25 |
| Max.Cutting Force of Slide Head (KN) | 20 | 20 | 20 | 20 |
| Max.Torque of Working Table (KN.M) | 17.5 | 25 | 32 | 32 |
| Range of Working Table Speeds (16 steps) (r/min) | 6.3-200 | 5-160 | 2.5-125 | 2.5-125 |
| Swivel of Rail Head | ±30 | ±30 | ±30 | ±30 |
| Range of Feed Rates (12 steps) (mm/min) | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 |
| Travel of Cross Beam (mm) | 650/850/1050 | 650/1050/1250 | 900/1250/1450 | 900/1250/1450 |
| Moving Speed of Cross Beam (mm/min) | 440 | 440 | 440 | 440 |
| Level Travel of Rail Head (mm) | 650 | 800 | 1050 | 1200 |
| Ram Travel of Rail Head (mm) | 650 | 800/1000 | 800/1000 | 800/1000 |
| Ram Hor. Travel of Side Head (mm) | 500 | 630 | 630 | 630 |
| Vertical Travel of Side Head (mm) | 970 | 980 | 1180 | 1180 |
| Rapid Speed of Tool Post (mm/min) | 1800 | 1800 | 1800 | 1800 |
| Height of Tool Bar Section (mm) | 40 | 40 | 40 | 40 |
| Power of Main Motor (Kw) | 22 | 30 | 37 | 37 |
| Dimension of Machine (mm) | 2360*2470*3580 | 2830*2870*3870 | 3210*4050*4200 | 3410*4050*4200 |
| Weight of Machine (T) | 8.3/8.6/8.9 | 12.6/13.8/14.1 | 17.5/18.6/19.5 | 18/19.1/20.6 |
