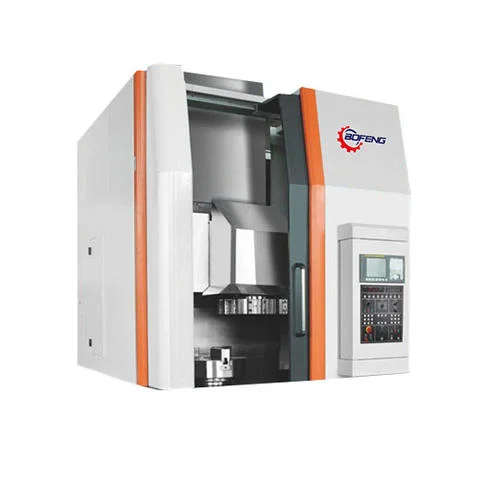

Precise CNC Vertical Turning Machine CKV Series
Completed whole spindle unit, with servo motor.
Differet kinds of tool changer as option.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
X Z use HIWIN/PMI heavy duty roller type linear rail.
Completed whole spindle unit, with servo motor
Differet kinds of tool changer as option.
A) Electric turret ( 4 / 5 / 6 position)
B) Hydraulic turret ( 8 / 12 position)
C) Servo power turret ( 8 / 12 position)
Technical Parameters:
| Model | CKV500 | ||
| CKV500A | CKV500E | CKV500E+C | |
| Max. Turning Dia. (mm) | 600 | ||
| Max. Cutting Dia. (mm) | 500 | ||
| Max. Turning Height (mm) | 600 | ||
| Max. load on working table (kg) | 800 | ||
| Chuck size (inch / mm) | 15" / 380 | ||
| Max. X travel (mm) | 330 | ||
| Max. Z travel (mm) | 600 | ||
| Max. spindle speed (rpm) | 50 ~ 1500 | ||
| Max . Torque of spindle ( N.M) | 750 | ||
| Spindel motor ( kw) | 22 / 30 | ||
| X rapid moving speed （mm/min) | 12000 | ||
| Z rapid moving speed （mm/min) | 12000 | ||
| Max. cutting feeding rate (mm/min) | 2000 | ||
| Tool magazine ( ATC) | Electric ( vertical) | Hydraulic ( Horizontal) | Servo power turret |
| Tool positions | 4 / 5 / 6 | 8 | V.D.I 40 8 |
| Tool shank size (mm) | 32*32 | 32*32 | 32*32 |
| X Positioning accuracy (mm) | ±0.008 | ||
| Z Positioning accuracy (mm) | ±0.01 | ||
| X Reppositioning accuracy (mm) | ±0.004 | ||
| Z Repositioning accuracy (mm) | ±0.005 | ||
| Best Roughness ( um) | Ra1.6 | ||
| Dimension ( L*W) (mm) | 3200*2000*3000 | 3200*2000*3000 | 3200*2000*3000 |
| Machine weight (kg) | 8000 | 8000 | 8200 |
| Model | CKV630 | ||
| CKV630A | CKV630E | CKV630E+C | |
| Max. Turning Dia. (mm) | 780 | ||
| Max. Cutting Dia. (mm) | 630 | ||
| Max. Turning Height (mm) | 700 | ||
| Max. load on working table (kg) | 1000 | ||
| Chuck size (inch / mm) | 21" / 610 | ||
| Max. X travel (mm) | 400 | ||
| Max. Z travel (mm) | 700 | ||
| Max. spindle speed (rpm) | 50 ~ 750 | ||
| Max . Torque of spindle ( N.M) | 750 | ||
| Spindel motor ( kw) | 22 / 30 | ||
| X rapid moving speed （mm/min) | 12000 | ||
| Z rapid moving speed （mm/min) | 12000 | ||
| Max. cutting feeding rate (mm/min) | 2000 | ||
| Tool magazine ( ATC) | Electric ( vertical) | Hydraulic ( Horizontal) | Servo power turret |
| Tool positions | 4 / 5 / 6 | 8 | V.D.I 40 8 |
| Tool shank size (mm) | 32*32 | 32*32 | 32*32 |
| X Positioning accuracy (mm) | ±0.008 | ||
| Z Positioning accuracy (mm) | ±0.01 | ||
| X Reppositioning accuracy (mm) | ±0.004 | ||
| Z Repositioning accuracy (mm) | ±0.005 | ||
| Best Roughness ( um) | Ra1.6 | ||
| Dimension ( L*W) (mm) | 3600*2300*3100 | 3600*2300*3100 | 3600*2300*3100 |
| Machine weight (kg) | 9000 | 9000 | 9500 |
| Model | CKV800 | ||
| CKV800A | CKV800E | CKV800E+C | |
| Max. Turning Dia. (mm) | 1000 | ||
| Max. Cutting Dia. (mm) | 800 | ||
| Max. Turning Height (mm) | 800 | ||
| Max. load on working table (kg) | 1500 | ||
| Chuck size (inch / mm) | 24" / 610 | ||
| Max. X travel (mm) | 550 | ||
| Max. Z travel (mm) | 800 | ||
| Max. spindle speed (rpm) | 50 ~ 750 | ||
| Max . Torque of spindle ( N.M) | 1800 | ||
| Spindel motor ( kw) | 30 / 37 | ||
| X rapid moving speed （mm/min) | 10000 | ||
| Z rapid moving speed （mm/min) | 10000 | ||
| Max. cutting feeding rate (mm/min) | 2000 | ||
| Tool magazine ( ATC) | Electric ( vertical) | Hydraulic ( Horizontal) | Servo power turret |
| Tool positions | 4 / 5 / 6 | 8 / 10 | V.D.I 40 8 / 10 |
| Tool shank size (mm) | 32*32 | 32*32 | 32*32 |
| X Positioning accuracy (mm) | ±0.01 | ||
| Z Positioning accuracy (mm) | ±0.015 | ||
| X Reppositioning accuracy (mm) | ±0.005 | ||
| Z Repositioning accuracy (mm) | ±0.008 | ||
| Best Roughness ( um) | Ra1.6 | ||
| Dimension ( L*W) (mm) | 3800*2500*3500 | 3800*2500*3500 | 3800*2500*3500 |
| Machine weight (kg) | 12000 | 12000 | 12500 |
