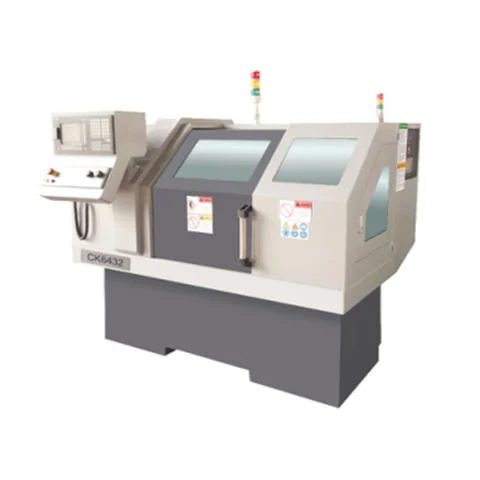

CK6132 CK6432 Small CNC Turning Machine
High Frequency Quenching for Guide rail.
Inverter control spinde motor, Max.speed 2500rpm.
CNC system: GSK,Syntec, Siemens, Fanuc.
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
Main Features:
High quality resin sand casting.
High Frequency Quenching for Guide rail.
Inverter control spinde motor, Max.speed 2500rpm.
CNC system: GSK,Syntec, Siemens, Fanuc.
Technical Parameters:
| Parameter | CK6132 | CK6432 |
| Max.swing over bed | Φ320mm | Φ360mm |
| Max.swing over slide | Φ150mm | Φ160mm |
| Max.workpiece length | 500/750/1000mm | 500/750mm |
| Rail width | 206mm | 260 |
| Maximum spindle speed | 150-2500r/min | 150-2500r/min |
| Dia of spindle bore | Φ40/ 56mm | Φ60mm |
| Spindle taper | MT5 | MT6 |
| X-axis rapid traverse | 4m/min | 4m/min |
| Z-axis rapid traverse | 7m/min | 7m/min |
| X-axis limit travel | 180mm | 350mm |
| Z-axis limit travel | 500/750/1000mm | 500/750mm |
| Sleeve diameter | Φ32mm | Φ50mm |
| Sleeve travel | 100mm | 100mm |
| Sleeve taper | MT3 | MT4 |
| Tool post/turret | Gang tool, Electric 4-station turret LDB4 | |
| Shank size | 20*20mm | 25*25mm |
| Min setting unit | X axis:0.001mm Z axis:0.001mm | |
| Spindle motor power | 2.2/ 3.7KW | 3.7KW |
| Coolant pump motor | 120W | 120W |
| Dimension(L*W*H) | 1600/1920/2100*1120*1750mm | 1740/2000*1210X1650mm |
| Aprroximate weight | 800/900/1050Kg | 1250/ 1350KG |
