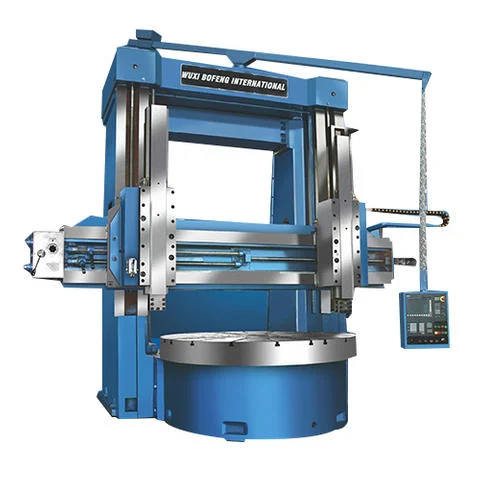

Double Column Vertical Lathe
CJK5225: CNC control ( System: GSK, SYNTEC, FANUC, SIEMENS)
Optional：Electric turret / ATC tool magazine
E-mail: sales@wxbofeng.com david@wxbofeng.com
Wechat: ZF1012821391
Whatsapp: 0086 13771407736
QQ: 1012821391
Mobile: +86 13771407736
C5225E: PLC control
CJK5225: CNC control ( System: GSK, SYNTEC, FANUC, SIEMENS)
Optional：Electric turret / ATC tool magazine
Technical Parameters:
| Model | C5225E -10 |
| CJK5225 -10 | |
| Max.Turning Dia.(mm) | 2500 |
| Working Table Dia.(mm) | 2250 |
| Max. Height of Workpiece (mm) | 1600/2100/2600 |
| Max.Weight of Workpiece (T) | 1900/1/10 |
| Max.Cutting Force of Right Rail Head (Kn) | 35 |
| Max.Cutting Force of Left Rail Head (Kn) | 30 |
| Max.Torque of Working Table (Kn.m) | 63 |
| Range of Working Table Speeds (16 steps) (r/min) | 2-63 |
| Swivel of Rail Head | ±30° |
| Range of Feed Rates (18 steps) (mm/min) | 0.25-90 |
| Travel of Cross Beam (mm) | 1250/1750/2250 |
| Moving Speed of Cross Beam (mm/min) | 350 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Rapid Speed of Tool Post (mm/min) | 1560 |
| Height of Tool Bar Section (mm) | 40*50 |
| Power of Main Motor (Kw) | 55 |
| Dimension of Machine (mm) | 5040*4400*(4350/4850/5850) |
| Weight of Machine (T) | 32/34/35.5 |
| Model | C5225E-12 |
| CJK5225-12 | |
| Max.Turning Dia.(mm) | 2500 |
| Working Table Dia.(mm) | 2250 |
| Max. Height of Workpiece (mm) | 1600/2100/2600 |
| Max.Weight of Workpiece (T) | 12 |
| Max.Cutting Force of Right Rail Head (Kn) | 35 |
| Max.Cutting Force of Left Rail Head (Kn) | 30 |
| Max.Torque of Working Table (Kn.m) | 63 |
| Range of Working Table Speeds (16 steps) (r/min) | 2-63 |
| Swivel of Rail Head | ±30° |
| Range of Feed Rates (18 steps) (mm/min) | 0.25-90 |
| Travel of Cross Beam (mm) | 1250/1750/2250 |
| Moving Speed of Cross Beam (mm/min) | 350 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Rapid Speed of Tool Post (mm/min) | 1560 |
| Height of Tool Bar Section (mm) | 40*50 |
| Power of Main Motor (Kw) | 55 |
| Dimension of Machine (mm) | 5040*4400*(4350/4850/5850) |
| Weight of Machine (T) | 32/34/35.5 |
| Model | C5225E-16 |
| CJK5225-16 | |
| Max.Turning Dia.(mm) | 2500 |
| Working Table Dia.(mm) | 2250 |
| Max. Height of Workpiece (mm) | 1600/2100/2600 |
| Max.Weight of Workpiece (T) | 16 |
| Max.Cutting Force of Right Rail Head (Kn) | 35 |
| Max.Cutting Force of Left Rail Head (Kn) | 30 |
| Max.Torque of Working Table (Kn.m) | 63 |
| Range of Working Table Speeds (16 steps) (r/min) | 2-63 |
| Swivel of Rail Head | ±30° |
| Range of Feed Rates (18 steps) (mm/min) | 0.25-90 |
| Travel of Cross Beam (mm) | 1250/1750/2250 |
| Moving Speed of Cross Beam (mm/min) | 350 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Vertical Travel of Right Rail Head (mm) | 1000/1250 |
| Horizontal Travel of Right Rail Head (mm) | 1400 |
| Rapid Speed of Tool Post (mm/min) | 1560 |
| Height of Tool Bar Section (mm) | 40*50 |
| Power of Main Motor (Kw) | 55 |
| Dimension of Machine (mm) | 5040*4400*(4350/4850/5850) |
| Weight of Machine (T) | 32/34/36 |
